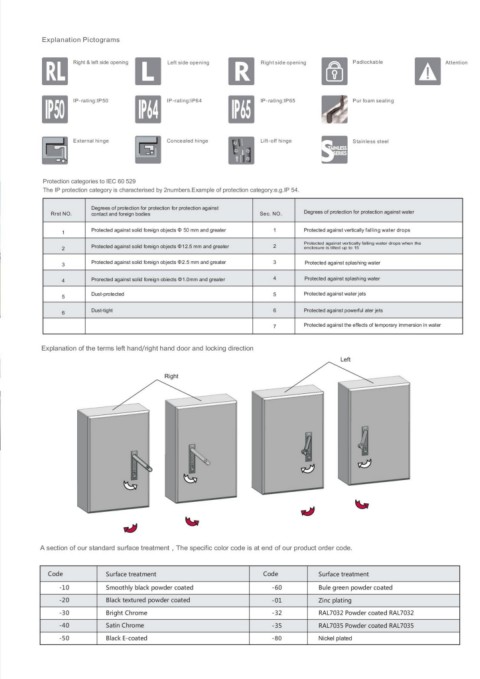

Page 3 - MasinoFastening_lukkokatalogi

Explanation Pictograms Left side opening Right side opening Padlockable Attention
Pur foam sealing
Right & left side opening 65 IP-rating:IP65 Stainless steel

50 IP-rating:IP50 64 IP-rating:IP64 Lift-off hinge

External hinge Concealed hinge

Protection categories to IEC 60 529
The IP protection category is characterised by 2numbers.Example of protection category:e.g.IP 54.

Rrst NO． Degrees of protection for protection for protection against Sec.NO． Degrees of protection for protection against water
contact and foreign bodies 1
1 Protected against solid foreign objects Φ 50 mm and greater 2 Protected against vertically falling water drops
2 Protected against solid foreign objects Φ12.5 mm and greater 3
3 Protected against solid foreign objects Φ2.5 mm and greater 4 Protected against vertically falling water drops when the
4 Prorected against solid foreign obiects Φ1.0mm and greater 5 enclosure is tilted up to 15
5 Dust-protected 6
6 Dust-tight 7 Protected against splashing water
Protected against splashing water
Protected against water jets
Protected against powerful ater jets
Protected against the effects of temporary immersion in water

Explanation of the terms left hand/right hand door and locking direction Left

Right

A section of our standard surface treatment，The specific color code is at end of our product order code.

Code Surface treatment Code Surface treatment
-10 Smoothly black powder coated Bule green powder coated
-20 Black textured powder coated -60 Zinc plating
-30 Bright Chrome -01 RAL7032 Powder coated RAL7032
-40 Satin Chrome -32 RAL7035 Powder coated RAL7035
-50 Black E-coated -35 Nickel plated
-80
