P. 173

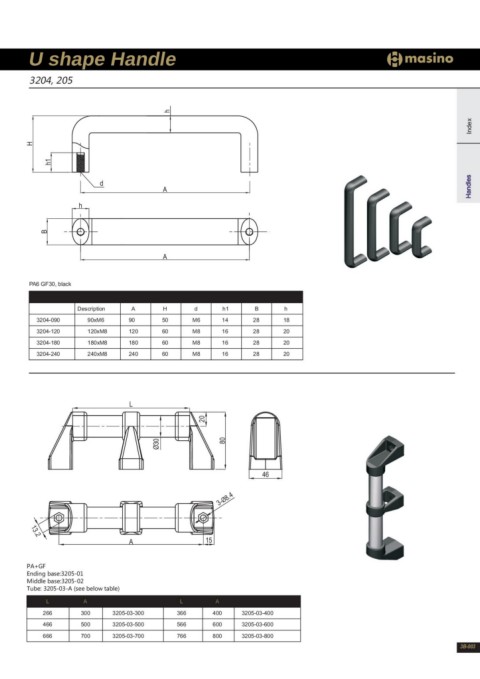

U shape Handle
3204, 205
h
Index
H
h1
d A Handles
h
B
A
PA6 GF30, black
Description A H d h1 B h
3204-090 90xM6 90 50 M6 14 28 18
3204-120 120xM8 120 60 M8 16 28 20
3204-180 180xM8 180 60 M8 16 28 20
3204-240 240xM8 240 60 M8 16 28 20
L
Ø30
20
80
46
3-Ø8.4
13.2 15
A
LA
PA+GF 366 400 3205-03-400
Ending base:3205-01 566 600 3205-03-600
Middle base:3205-02 766 800 3205-03-800
Tube: 3205-03-A (see below table)
LA
266 300 3205-03-300
466 500 3205-03-500
666 700 3205-03-700
