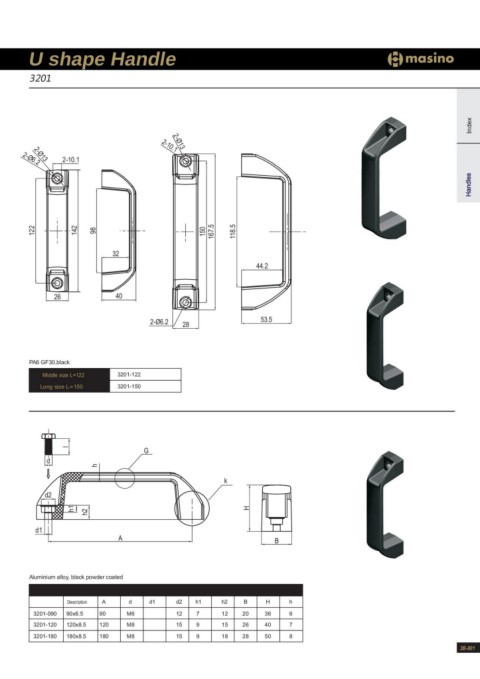

U shape Handle

3201

Index

2-Ø6.2 2-Ø132-10.1
2-Ø13
2-10.1

Handles

122
142
98
150
167.5
118.5

32

26 40 44.2
2-Ø6.2 28 53.5

PA6 GF30,black 3201-122
Middle size L=122 3201-150
Long size L=150

d l G
d2 h A
d1
h1 k H
h2 B

Aluminium alloy, black powder coated

3201-090 Description A d d1 d2 h1 h2 B H h
3201-120 90 M6 12 7 12 20 36 6
3201-180 90x6.5 120 M8 15 9 15 26 40 7
120x8.5 180 M8 15 9 18 28 50 8
180x8.5

3B-001
