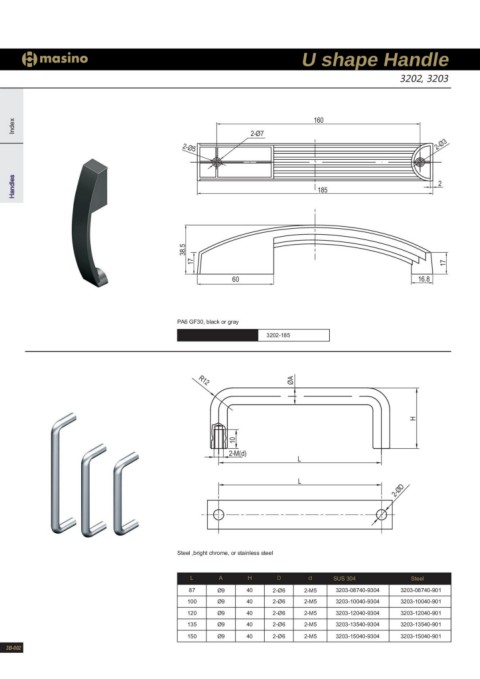

U shape Handle
3202, 3203
Index 160
2-Ø7
Handles 2-Ø5 2-Ø3
2
185
38.5
17
17
60 16.8
PA6 GF30, black or gray
3202-185
R12 10
ØA
2-M(d) L
2-ØDL
H
Steel ,bright chrome, or stainless steel
L AH D d SUS 304 Steel
3203-08740-901
87 Ø9 40 2-Ø6 2-M5 3203-08740-9304 3203-10040-901
3203-12040-901
100 Ø9 40 2-Ø6 2-M5 3203-10040-9304 3203-13540-901
3203-15040-901
120 Ø9 40 2-Ø6 2-M5 3203-12040-9304
135 Ø9 40 2-Ø6 2-M5 3203-13540-9304
150 Ø9 40 2-Ø6 2-M5 3203-15040-9304
