P. 168

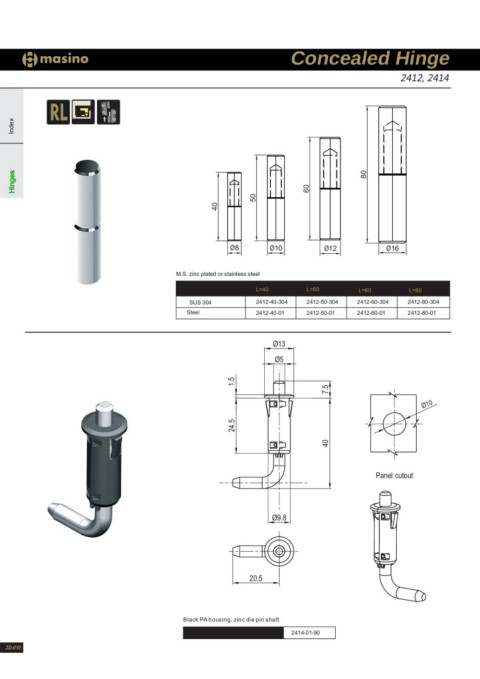

Concealed Hinge
2412, 2414
Index
Hinges 40
50
60
80
Ø8 Ø10 Ø12 Ø16
M.S. zinc plated or stainless steel
SUS 304 L=40 L=50 L=60 L=80
Steel 2412-40-304 2412-50-304 2412-60-304 2412-80-304
2412-40-01 2412-50-01 2412-60-01 2412-80-01
Ø13
Ø5
24.5 1.5 Ø10
40 7.5
Panel cutout
Ø9.8
20.5
Black PA housing, zinc die pin shaft
2414-01-90
2D-010
