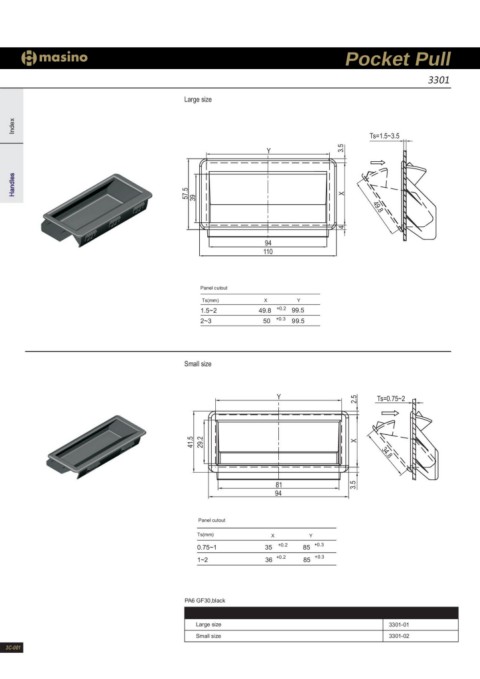

Large size Pocket Pull
3301
Index Ts=1.5~3.5
3597.5 Y
4 X 3.5
Handles
Panel cutout 94 49.8 34.8
110
Ts(mm)
XY
1.5~2
2~3 49.8 +0.2 99.5
50 +0.3 99.5
Small size
Y X 2.5 Ts=0.75~2
41.5
29.2
81 3.5
94
Panel cutout X Y
Ts(mm)
35 +0.2 85 +0.3
0.75~1 36 +0.2 85 +0.3
1~2
3301-01
PA6 GF30,black 3301-02
Large size
Small size
