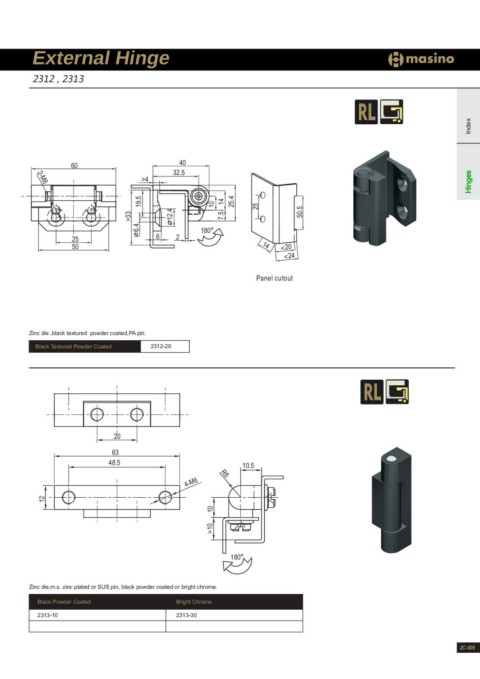

External Hinge

2312 , 2313

Index

60 40 Hinges
>4 32.5
R6
2-M6 >33
6.4 19.5

12.4
10

7.5 14
25.4
25

50.5
62 180°
2505
14 ＜＜2204

Panel cutout

Zinc die ,black textured powder coated,PA pin.

Black Textured Powder Coated 2312-20

20
63
48.5 10.5

4-M6

12
＞10 10

180°

Zinc die,m.s. zinc plated or SUS pin, black powder coated or bright chrome.

Black Powder Coated Bright Chrome
2313-10 2313-30

2C-006
