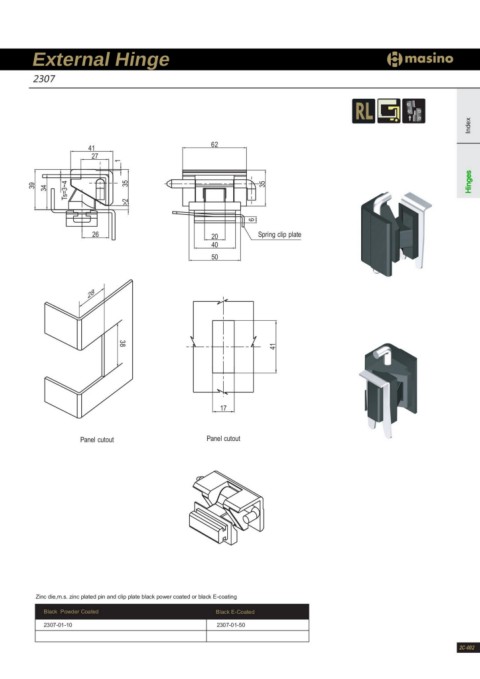

External Hinge Index
2307
41 62
27
26 20 Spring clip plate
40
50
28
39 Hinges
34
Ts=3~4
>2 35 1
6
35
38 41
Panel cutout 17
Panel cutout
Zinc die,m.s. zinc plated pin and clip plate black power coated or black E-coating
Black Powder Coated Black E-Coated
2307-01-10 2307-01-50
2C-002
