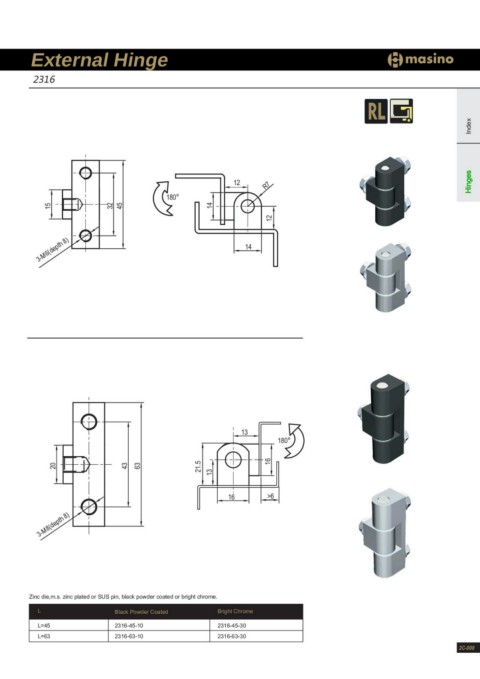

External Hinge
2316
Index
12 R7 Hinges
180°
14
15
32
45
14
12
3-M6(depth 8)
13
180°
16 >6
20
43
63
21.5
13
16
3-M8(depth 8)
Zinc die,m.s. zinc plated or SUS pin, black powder coated or bright chrome.
L Black Powder Coated Bright Chrome
L=45 2316-45-10 2316-45-30
L=63 2316-63-10 2316-63-30
