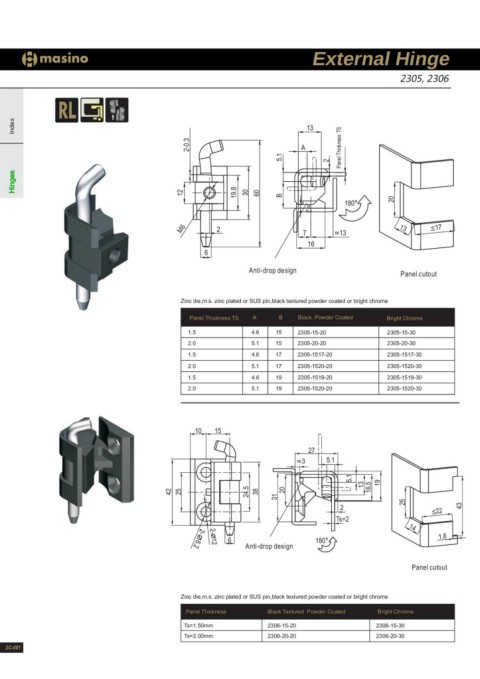

Index External Hinge
2305, 2306

13
A
M6 12 2-0.3
Hinges 19.8
30
60 180°
B 5.1
2

Panel Thickness TS

20
≈227 ≈13 13 ≤17
2- 126 16 Panel cutout
2- 6.2
Anti-drop design

Zinc die,m.s. zinc plated or SUS pin,black textured powder coated or bright chrome

Panel Thickness TS A B Black Powder Coated Bright Chrome

1.5 4.6 15 2305-15-20 2305-15-30
2.0 5.1 15 2305-20-20 2305-20-30
1.5 4.6 17 2305-1517-20 2305-1517-30
2.0 5.1 17 2305-1520-20 2305-1520-30
1.5 4.6 19 2305-1519-20 2305-1519-30
2.0 5.1 19 2305-1520-20 2305-1520-30

10 15

27 5.1
≈3

42
25
24.5
38
31
20

5.1
16.153

19
25
43
2 ≤22
6 Anti-drop design Ts=2 14

180° 1.8

Panel cutout

Zinc die,m.s. zinc plated or SUS pin,black textured powder coated or bright chrome

Panel Thickness Black Textured Powder Coated Bright Chrome

Ts=1.50mm 2306-15-20 2306-15-30
Ts=2.00mm 2306-20-20 2306-20-30

2C-001
