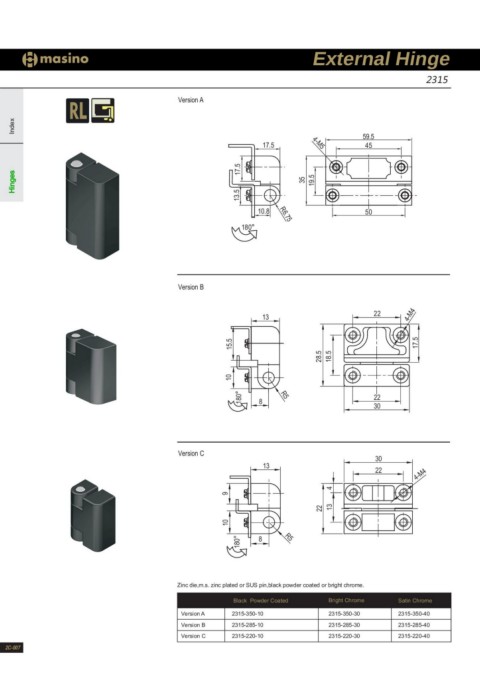

P. 150
Version A External Hinge
2315
Index 59.5
17.5 45
4-M5
Hinges 13.5 17.5 R6.75
35
19.5
10.8 50
180° 22
Version B
10 15.513
180°
28.5
18.5
17.5 4-M4
8 R5 22
13 30
Version C
30
22 4-M4
10 9
180°
22
13 4
8 R5
Zinc die,m.s. zinc plated or SUS pin,black powder coated or bright chrome.
Version A Black Powder Coated Bright Chrome Satin Chrome
Version B
Version C 2315-350-10 2315-350-30 2315-350-40
2315-285-10 2315-285-30 2315-285-40
2315-220-10 2315-220-30 2315-220-40
2C-007
