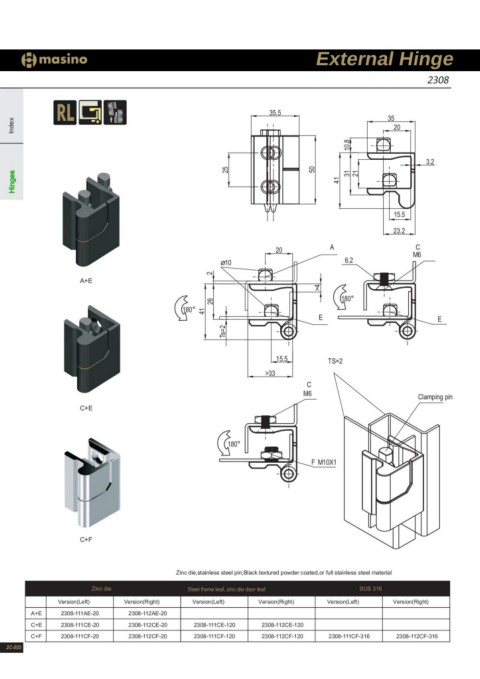

Index External Hinge
2308

35.5 35
20
3.2
25
Hinges 50
41
31 10.8
21

20 A 15.5
10 6.2 23.2

MC6

2

A+E >4

180°41
180°26

EE
Ts=2

15.5 TS=2
>33

C
M6 Clamping pin

C+E

180°
F M10X1

C+F

Zinc die,stainless steel pin,Black textured powder coated,or full stainless steel material

Zinc die Steel frame leaf, zinc die door leaf SUS 316
Version(Left)
Version(Left) Version(Right) Version(Left) Version(Right) Version(Right)
2308-111AE-20 2308-112AE-20
A+E 2308-111CE-20 2308-112CE-20 2308-111CE-120 2308-112CE-120 2308-111CF-316 2308-112CF-316
C+E 2308-111CF-20 2308-112CF-20 2308-111CF-120 2308-112CF-120
C+F

2C-003
