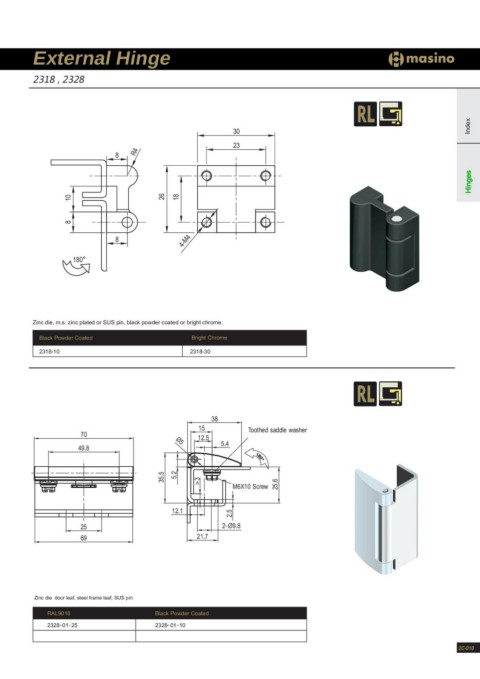

External Hinge 30 Index
23
2318 , 2328

8
8 10
R4 Hinges

26
4-M4 18
8
180°

Zinc die, m.s. zinc plated or SUS pin, black powder coated or bright chrome.

Black Powder Coated Bright Chrome
2318-10 2318-30

38
15
70 Ø5 12.5 5.4 Toothed saddle washer
49.8

35.5
5.2

>3
2.5

25.6
M6X10 Screw

12.1
25 2-Ø9.8
69 21.7

Zinc die door leaf, steel frame leaf, SUS pin Black Powder Coated
2328-01-10
RAL9016
2328-01-25

2C-010
