P. 143

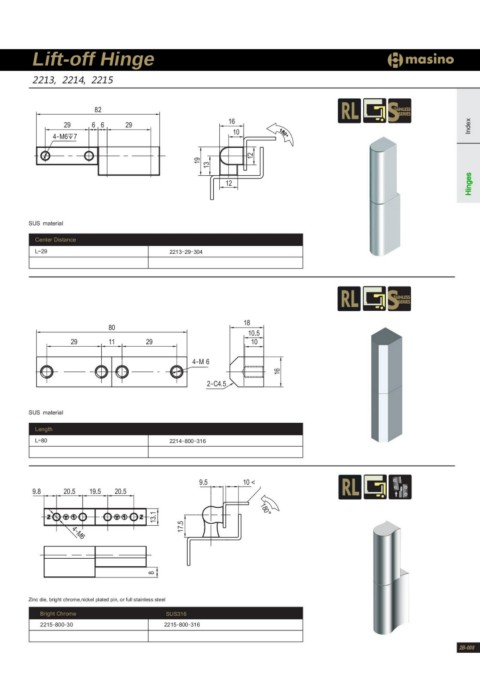

Lift-off Hinge
2213, 2214, 2215
29 82 29 16 Index
4-M6 7 66 10
19
13
12
12 Hinges
SUS material 2213-29-304
Center Distance
L=29
80 18
29 11 29 10.5
10
4-M 6 16
2-C4.5
SUS material 2214-800-316
Length
L=80
9.8 20.5 19.5 20.5 9.5 10＜
180°
4-M6
13.1
17.5
8
Zinc die, bright chrome,nickel plated pin, or full stainless steel
Bright Chrome SUS316
2215-800-30 2215-800-316
2B-008
