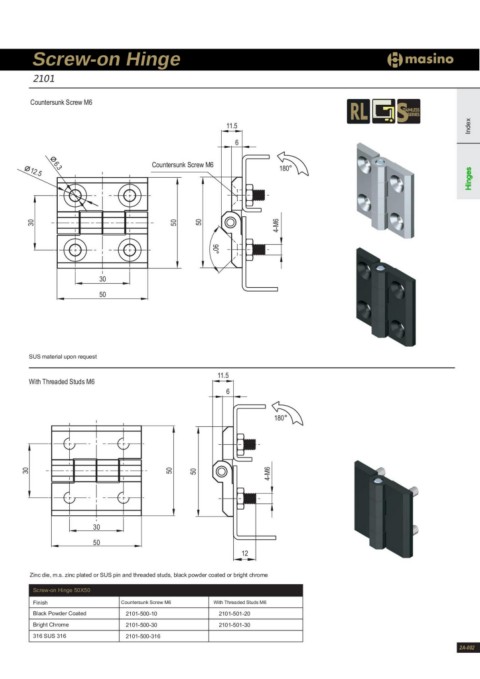

Screw-on Hinge Index

2101 180°

Countersunk Screw M6

11.5
6

12.5 Countersunk Screw M6
90° Hinges
6.3
30
50
50
4-M6

30 11.5
50 6

SUS material upon request 180°

With Threaded Studs M6

30
50
50
4-M6

30
50

12

Zinc die, m.s. zinc plated or SUS pin and threaded studs, black powder coated or bright chrome

Screw-on Hinge 50X50 Countersunk Screw M6 With Threaded Studs M6
2101-500-10 2101-501-20
Finish 2101-500-30 2101-501-30
Black Powder Coated 2101-500-316
Bright Chrome
316 SUS 316
