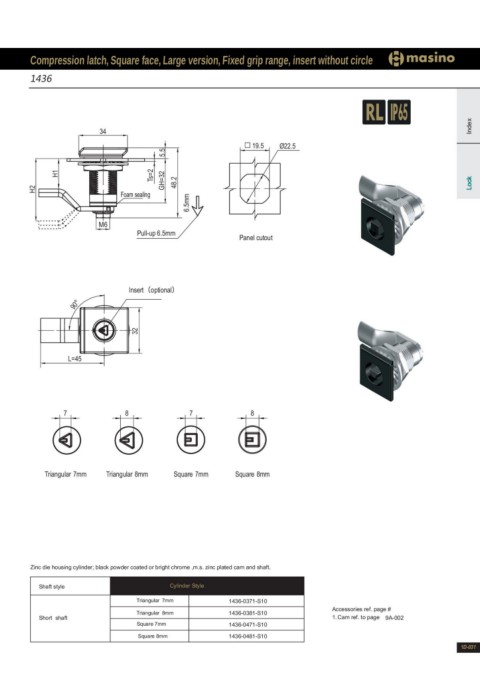

Compression latch, Square face, Large version, Fixed grip range, insert without circle
1436
34 Index
H2 Foam sealing 19.5 Ø22.5 Lock
H1 M6 Panel cutout
Ts=2Pull-up 6.5mm
GH=32 5.5
48.2
6.5mm
Insert（optional）
90°
32
L=45 78
78
Triangular 7mm Triangular 8mm Square 7mm Square 8mm
Zinc die housing cylinder; black powder coated or bright chrome ,m.s. zinc plated cam and shaft.
Shaft style Cylinder Style 1436-0371-S10 Accessories ref. page #
Short shaft 1436-0381-S10 1. Cam ref. to page 9A-002
Triangular 7mm 1436-0471-S10
Triangular 8mm 1436-0481-S10
Square 7mm
Square 8mm
1D-031
