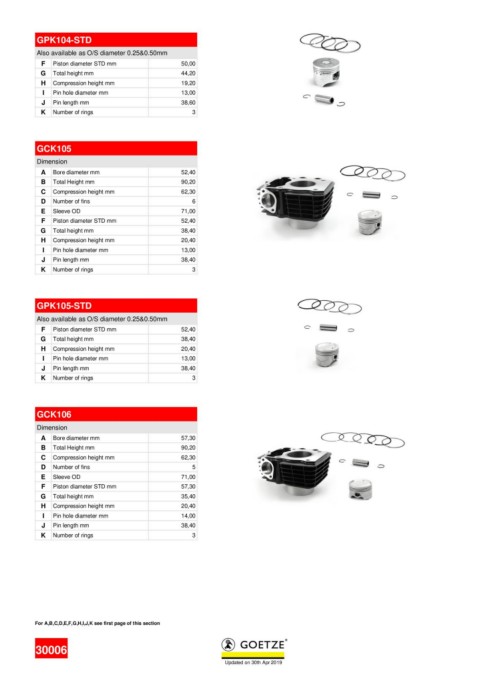

Page 510 - champion-moottoripyoratulpat

GPK104-STD 50,00
44,20
Also available as O/S diameter 0.25&0.50mm 19,20
F Piston diameter STD mm 13,00
G Total height mm 38,60
H Compression height mm
I Pin hole diameter mm 3
J Pin length mm
K Number of rings

GCK105 52,40
90,20
Dimension 62,30
A Bore diameter mm
B Total Height mm 6
C Compression height mm 71,00
D Number of fins 52,40
E Sleeve OD 38,40
F Piston diameter STD mm 20,40
G Total height mm 13,00
H Compression height mm 38,40
I Pin hole diameter mm
J Pin length mm 3
K Number of rings

GPK105-STD 52,40
38,40
Also available as O/S diameter 0.25&0.50mm 20,40
F Piston diameter STD mm 13,00
G Total height mm 38,40
H Compression height mm
I Pin hole diameter mm 3
J Pin length mm
K Number of rings

GCK106 57,30
90,20
Dimension 62,30
A Bore diameter mm
B Total Height mm 5
C Compression height mm 71,00
D Number of fins 57,30
E Sleeve OD 35,40
F Piston diameter STD mm 20,40
G Total height mm 14,00
H Compression height mm 38,40
I Pin hole diameter mm
J Pin length mm 3
K Number of rings

For A,B,C,D,E,F,G,H,I,J,K see first page of this section 30006

30006

Updated on 30th Apr 2019
