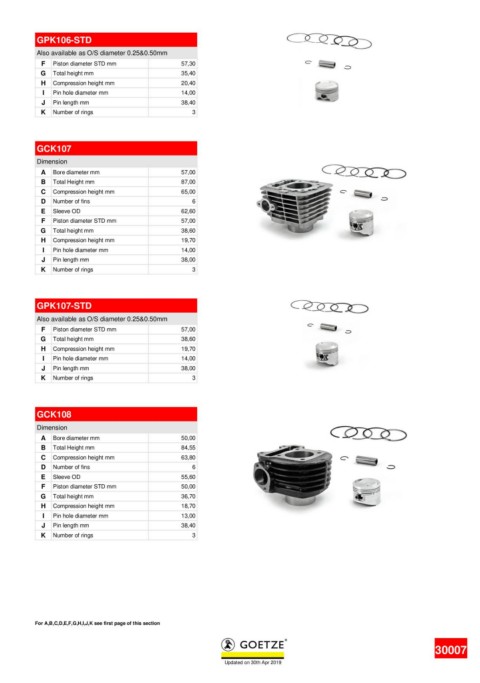

GPK106-STD 57,30
35,40
Also available as O/S diameter 0.25&0.50mm 20,40
F Piston diameter STD mm 14,00
G Total height mm 38,40
H Compression height mm
I Pin hole diameter mm 3
J Pin length mm
K Number of rings

GCK107 57,00
87,00
Dimension 65,00
A Bore diameter mm
B Total Height mm 6
C Compression height mm 62,60
D Number of fins 57,00
E Sleeve OD 38,60
F Piston diameter STD mm 19,70
G Total height mm 14,00
H Compression height mm 38,00
I Pin hole diameter mm
J Pin length mm 3
K Number of rings

GPK107-STD 57,00
38,60
Also available as O/S diameter 0.25&0.50mm 19,70
F Piston diameter STD mm 14,00
G Total height mm 38,00
H Compression height mm
I Pin hole diameter mm 3
J Pin length mm
K Number of rings

GCK108 50,00
84,55
Dimension 63,80
A Bore diameter mm
B Total Height mm 6
C Compression height mm 55,60
D Number of fins 50,00
E Sleeve OD 36,70
F Piston diameter STD mm 18,70
G Total height mm 13,00
H Compression height mm 38,40
I Pin hole diameter mm
J Pin length mm 3
K Number of rings

For A,B,C,D,E,F,G,H,I,J,K see first page of this section 30007

30007 Updated on 30th Apr 2019
