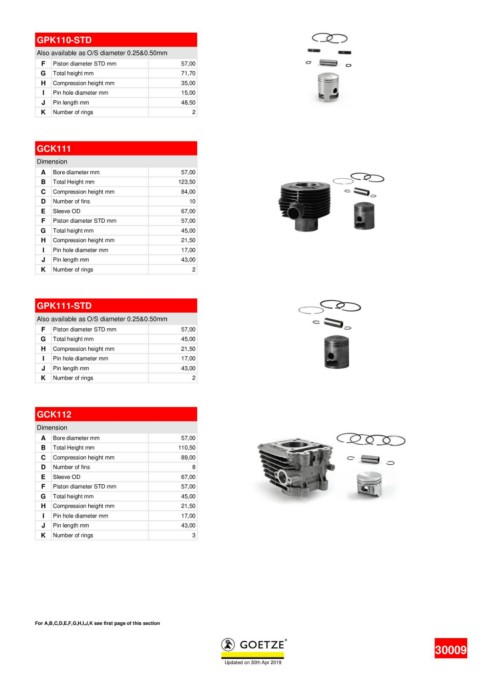

GPK110-STD 57,00
71,70
Also available as O/S diameter 0.25&0.50mm 35,00
F Piston diameter STD mm 15,00
G Total height mm 48,50
H Compression height mm
I Pin hole diameter mm 2
J Pin length mm
K Number of rings

GCK111 57,00
123,50
Dimension
A Bore diameter mm 84,00
B Total Height mm 10
C Compression height mm
D Number of fins 67,00
E Sleeve OD 57,00
F Piston diameter STD mm 45,00
G Total height mm 21,50
H Compression height mm 17,00
I Pin hole diameter mm 43,00
J Pin length mm
K Number of rings 2

GPK111-STD 57,00
45,00
Also available as O/S diameter 0.25&0.50mm 21,50
F Piston diameter STD mm 17,00
G Total height mm 43,00
H Compression height mm
I Pin hole diameter mm 2
J Pin length mm
K Number of rings

GCK112 57,00
110,50
Dimension
A Bore diameter mm 89,00
B Total Height mm 8
C Compression height mm
D Number of fins 67,00
E Sleeve OD 57,00
F Piston diameter STD mm 45,00
G Total height mm 21,50
H Compression height mm 17,00
I Pin hole diameter mm 43,00
J Pin length mm
K Number of rings 3

For A,B,C,D,E,F,G,H,I,J,K see first page of this section 30009

30009 Updated on 30th Apr 2019
