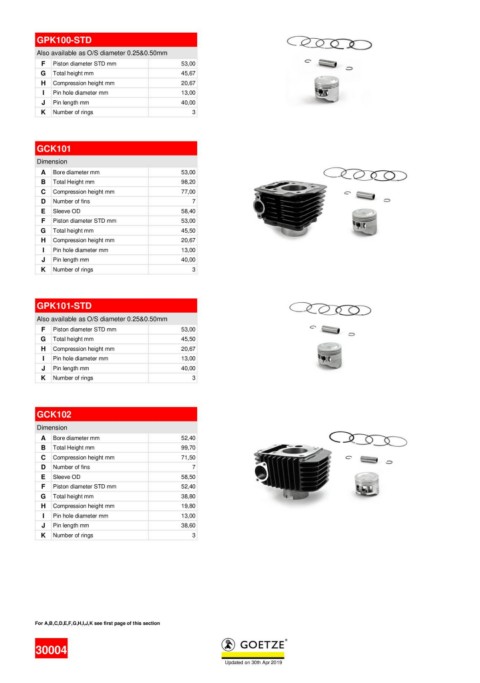

GPK100-STD 53,00
45,67
Also available as O/S diameter 0.25&0.50mm 20,67
F Piston diameter STD mm 13,00
G Total height mm 40,00
H Compression height mm
I Pin hole diameter mm 3
J Pin length mm
K Number of rings

GCK101 53,00
98,20
Dimension 77,00
A Bore diameter mm
B Total Height mm 7
C Compression height mm 58,40
D Number of fins 53,00
E Sleeve OD 45,50
F Piston diameter STD mm 20,67
G Total height mm 13,00
H Compression height mm 40,00
I Pin hole diameter mm
J Pin length mm 3
K Number of rings

GPK101-STD 53,00
45,50
Also available as O/S diameter 0.25&0.50mm 20,67
F Piston diameter STD mm 13,00
G Total height mm 40,00
H Compression height mm
I Pin hole diameter mm 3
J Pin length mm
K Number of rings

GCK102 52,40
99,70
Dimension 71,50
A Bore diameter mm
B Total Height mm 7
C Compression height mm 58,50
D Number of fins 52,40
E Sleeve OD 38,80
F Piston diameter STD mm 19,80
G Total height mm 13,00
H Compression height mm 38,60
I Pin hole diameter mm
J Pin length mm 3
K Number of rings

For A,B,C,D,E,F,G,H,I,J,K see first page of this section 30004

30004

Updated on 30th Apr 2019
