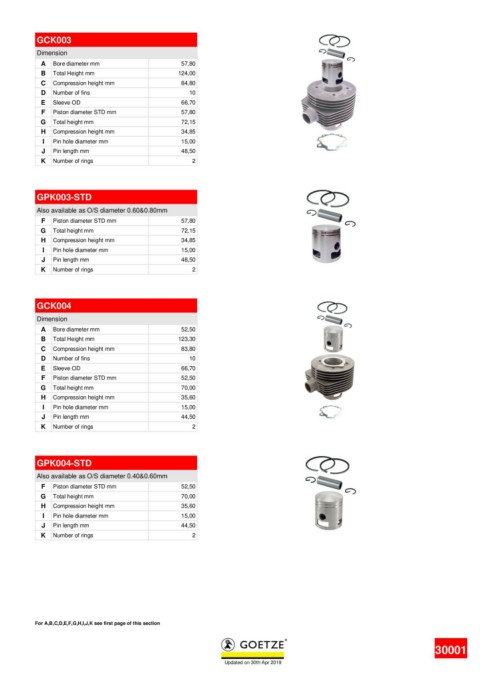

GCK003 57,80
124,00
Dimension
A Bore diameter mm 84,80
B Total Height mm 10
C Compression height mm
D Number of fins 66,70
E Sleeve OD 57,80
F Piston diameter STD mm 72,15
G Total height mm 34,85
H Compression height mm 15,00
I Pin hole diameter mm 48,50
J Pin length mm
K Number of rings 2

GPK003-STD 57,80
72,15
Also available as O/S diameter 0.60&0.80mm 34,85
F Piston diameter STD mm 15,00
G Total height mm 48,50
H Compression height mm
I Pin hole diameter mm 2
J Pin length mm
K Number of rings

GCK004 52,50
123,30
Dimension
A Bore diameter mm 83,80
B Total Height mm 10
C Compression height mm
D Number of fins 66,70
E Sleeve OD 52,50
F Piston diameter STD mm 70,00
G Total height mm 35,60
H Compression height mm 15,00
I Pin hole diameter mm 44,50
J Pin length mm
K Number of rings 2

GPK004-STD 52,50
70,00
Also available as O/S diameter 0.40&0.60mm 35,60
F Piston diameter STD mm 15,00
G Total height mm 44,50
H Compression height mm
I Pin hole diameter mm 2
J Pin length mm
K Number of rings

For A,B,C,D,E,F,G,H,I,J,K see first page of this section 30001

30001 Updated on 30th Apr 2019
