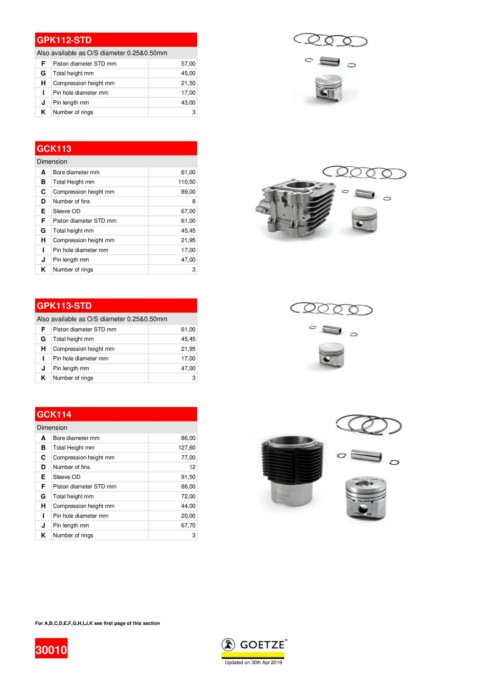

GPK112-STD 57,00
45,00
Also available as O/S diameter 0.25&0.50mm 21,50
F Piston diameter STD mm 17,00
G Total height mm 43,00
H Compression height mm
I Pin hole diameter mm 3
J Pin length mm
K Number of rings

GCK113 61,00
110,50
Dimension
A Bore diameter mm 89,00
B Total Height mm 8
C Compression height mm
D Number of fins 67,00
E Sleeve OD 61,00
F Piston diameter STD mm 45,45
G Total height mm 21,95
H Compression height mm 17,00
I Pin hole diameter mm 47,00
J Pin length mm
K Number of rings 3

GPK113-STD 61,00
45,45
Also available as O/S diameter 0.25&0.50mm 21,95
F Piston diameter STD mm 17,00
G Total height mm 47,00
H Compression height mm
I Pin hole diameter mm 3
J Pin length mm
K Number of rings

GCK114 86,00
127,60
Dimension
A Bore diameter mm 77,00
B Total Height mm 12
C Compression height mm
D Number of fins 91,50
E Sleeve OD 86,00
F Piston diameter STD mm 72,00
G Total height mm 44,00
H Compression height mm 20,00
I Pin hole diameter mm 67,70
J Pin length mm
K Number of rings 3

For A,B,C,D,E,F,G,H,I,J,K see first page of this section 30010

30010

Updated on 30th Apr 2019
