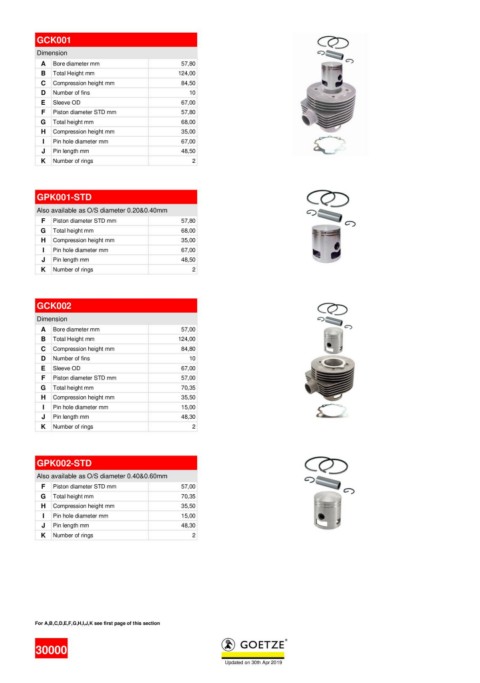

GCK001 57,80
124,00
Dimension
A Bore diameter mm 84,50
B Total Height mm 10
C Compression height mm
D Number of fins 67,00
E Sleeve OD 57,80
F Piston diameter STD mm 68,00
G Total height mm 35,00
H Compression height mm 67,00
I Pin hole diameter mm 48,50
J Pin length mm
K Number of rings 2

GPK001-STD 57,80
68,00
Also available as O/S diameter 0.20&0.40mm 35,00
F Piston diameter STD mm 67,00
G Total height mm 48,50
H Compression height mm
I Pin hole diameter mm 2
J Pin length mm
K Number of rings

GCK002 57,00
124,00
Dimension
A Bore diameter mm 84,80
B Total Height mm 10
C Compression height mm
D Number of fins 67,00
E Sleeve OD 57,00
F Piston diameter STD mm 70,35
G Total height mm 35,50
H Compression height mm 15,00
I Pin hole diameter mm 48,30
J Pin length mm
K Number of rings 2

GPK002-STD 57,00
70,35
Also available as O/S diameter 0.40&0.60mm 35,50
F Piston diameter STD mm 15,00
G Total height mm 48,30
H Compression height mm
I Pin hole diameter mm 2
J Pin length mm
K Number of rings

For A,B,C,D,E,F,G,H,I,J,K see first page of this section 30000

30000

Updated on 30th Apr 2019
