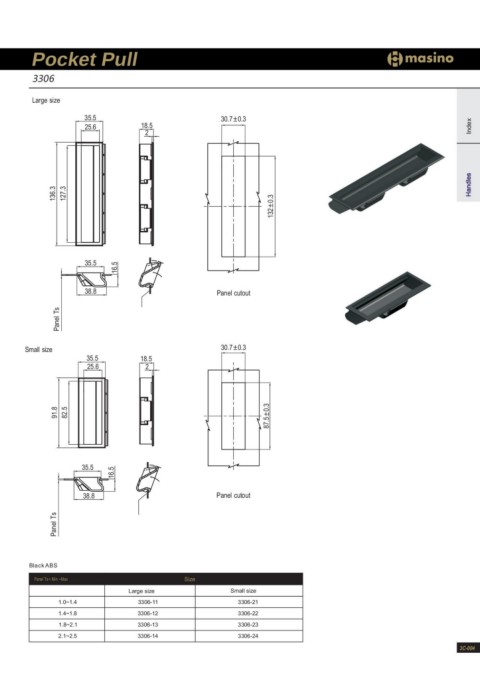

Pocket Pull
3306
Large size
35.5 182.5 30.7±0.3 Index
25.6
136.3 132±0.3 Handles
127.3
Panel Ts 35.5 Panel cutout
16.538.8 30.7±0.3
Small size 35.5 18.5
25.6 2
Panel Ts 91.8 87.5±0.3
82.5
35.5
16.538.8 Panel cutout
Black ABS Size
Panel Ts= Min ~Max
Large size Small size
1.0~1.4 3306-11 3306-21
1.4~1.8 3306-12 3306-22
1.8~2.1 3306-13 3306-23
2.1~2.5 3306-14 3306-24
