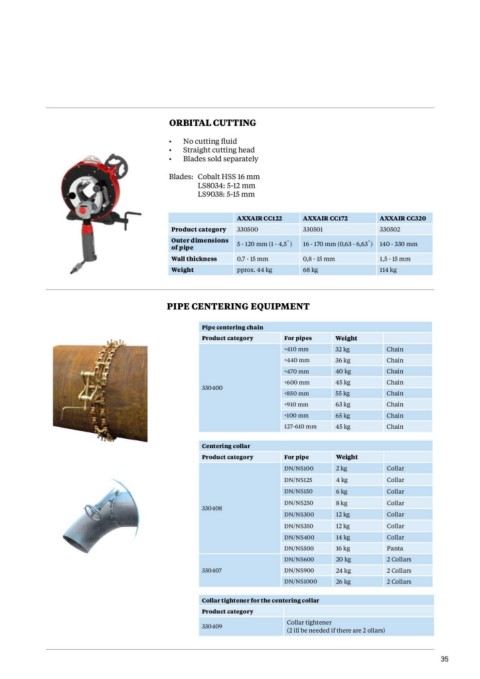

Page 35 - Teollisuuden-tuoteluettelo_englanti
P. 35
ORBITAL CUTTING
• No cutting fluid
• Straight cutting head
• Blades sold separately
Blades: Cobalt HSS 16 mm
LS8034: 5-12 mm
LS9038: 5-15 mm
Product category AXXAIR CC122 AXXAIR CC172 AXXAIR CC320
330500 330501 330502
Outer dimensions
of pipe 5 - 120 mm (1 - 4,5�) 16 - 170 mm (0,63 - 6,63�) 140 - 330 mm
Wall thickness 0,7 - 15 mm 0,8 - 15 mm 1,5 - 15 mm
pprox. 44 kg 68 kg 114 kg
Weight
PIPE CENTERING EQUIPMENT
Pipe centering chain For pipes Weight Chain
Product category <410 mm 32 kg Chain
<440 mm 36 kg Chain
330400 <470 mm 40 kg Chain
<600 mm 45 kg Chain
<850 mm 55 kg Chain
<910 mm 63 kg Chain
<100 mm 65 kg Chain
127-610 mm 45 kg
Centering collar For pipe Weight Collar
Product category DN/NS100 2 kg Collar
DN/NS125 4 kg Collar
330408 DN/NS150 6 kg Collar
DN/NS250 8 kg Collar
330407 DN/NS300 12 kg Collar
DN/NS350 12 kg Collar
DN/NS400 14 kg Panta
DN/NS500 16 kg 2 Collars
DN/NS600 20 kg 2 Collars
DN/NS900 24 kg 2 Collars
DN/NS1000 26 kg
Collar tightener for the centering collar
Product category
330409 Collar tightener
(2 ill be needed if there are 2 ollars)
35
