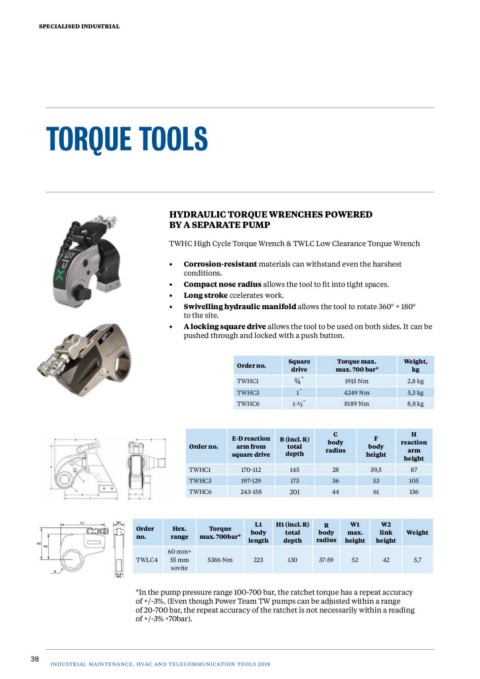

Page 38 - Teollisuuden-tuoteluettelo_englanti

SPECIALISED INDUSTRIAL

TORQUE TOOLS

HYDRAULIC TORQUE WRENCHES POWERED
BY A SEPARATE PUMP

TWHC High Cycle Torque Wrench & TWLC Low Clearance Torque Wrench

• Corrosion-resistant materials can withstand even the harshest
conditions.

• Compact nose radius allows the tool to fit into tight spaces.
• Long stroke ccelerates work.
• Swivelling hydraulic manifold allows the tool to rotate 360° + 180°

to the site.
• A locking square drive allows the tool to be used on both sides. It can be

pushed through and locked with a push button.

Order no. Square Torque max. Weight,
drive max. 700 bar* kg
TWHC1
TWHC3 ¾� 1915 Nm 2,8 kg
TWHC6
1� 4249 Nm 5,3 kg
8189 Nm 8,8 kg
1-½�

Order no. E-D reaction B (incl. R) C F H
arm from total body body reaction
TWHC1 depth radius height
TWHC3 square drive arm
TWHC6 28 39,5 height
170-112 145 36 53
197-129 173 44 61 87
243-158 201
105

136

Order Hex. Torque L1 H1 (incl. R) R W1 W2
no. range max. 700bar* body max. link
length total body height height Weight
TWLC4 60 mm+ 5386 Nm 5,7
55 mm 223 depth radius 52 42
sovite
130 37-59

*In the pump pressure range 100-700 bar, the ratchet torque has a repeat accuracy
of +/-3%. (Even though Power Team TW pumps can be adjusted within a range
of 20-700 bar, the repeat accuracy of the ratchet is not necessarily within a reading
of +/-3% <70bar).
