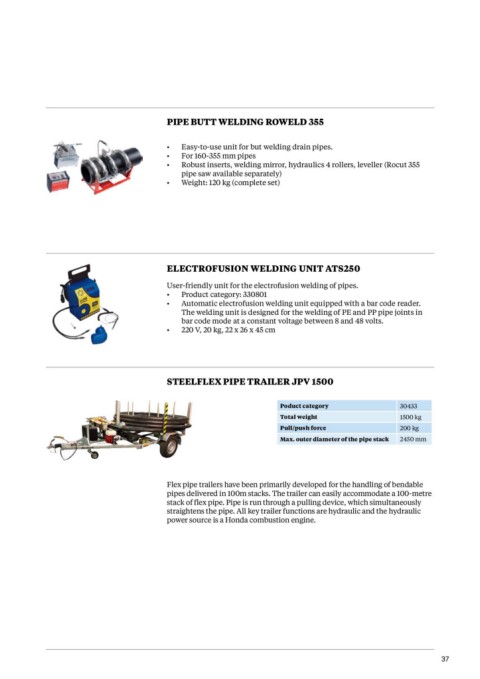

Page 37 - Teollisuuden-tuoteluettelo_englanti
P. 37
PIPE BUTT WELDING ROWELD 355
• Easy-to-use unit for but welding drain pipes.
• For 160-355 mm pipes
• Robust inserts, welding mirror, hydraulics 4 rollers, leveller (Rocut 355
pipe saw available separately)
• Weight: 120 kg (complete set)
ELECTROFUSION WELDING UNIT ATS250
User-friendly unit for the electrofusion welding of pipes.
• Product category: 330801
• Automatic electrofusion welding unit equipped with a bar code reader.
The welding unit is designed for the welding of PE and PP pipe joints in
bar code mode at a constant voltage between 8 and 48 volts.
• 220 V, 20 kg, 22 x 26 x 45 cm
STEELFLEX PIPE TRAILER JPV 1500
Poduct category 30433
Total weight 1500 kg
Pull/push force 200 kg
Max. outer diameter of the pipe stack 2450 mm
Flex pipe trailers have been primarily developed for the handling of bendable
pipes delivered in 100m stacks. The trailer can easily accommodate a 100-metre
stack of flex pipe. Pipe is run through a pulling device, which simultaneously
straightens the pipe. All key trailer functions are hydraulic and the hydraulic
power source is a Honda combustion engine.
37
