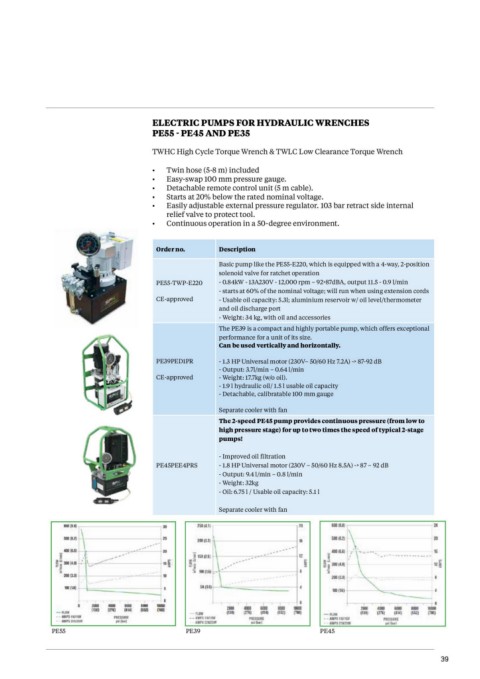

Page 39 - Teollisuuden-tuoteluettelo_englanti

ELECTRIC PUMPS FOR HYDRAULIC WRENCHES
PE55 - PE45 AND PE35

TWHC High Cycle Torque Wrench & TWLC Low Clearance Torque Wrench

• Twin hose (5-8 m) included
• Easy-swap 100 mm pressure gauge.
• Detachable remote control unit (5 m cable).
• Starts at 20% below the rated nominal voltage.
• Easily adjustable external pressure regulator. 103 bar retract side internal

relief valve to protect tool.
• Continuous operation in a 50-degree environment.

Order no. Description
PE55-TWP-E220
CE-approved Basic pump like the PE55-E220, which is equipped with a 4-way, 2-position
solenoid valve for ratchet operation
PE39PED1PR - 0.84kW - 13A230V - 12,000 rpm – 92>87dBA, output 11.5 - 0.9 l/min
CE-approved - starts at 60% of the nominal voltage; will run when using extension cords
- Usable oil capacity: 5.3l; aluminium reservoir w/ oil level/thermometer
PE45PEE4PRS and oil discharge port
- Weight: 34 kg, with oil and accessories
The PE39 is a compact and highly portable pump, which offers exceptional
performance for a unit of its size.
Can be used vertically and horizontally.

- 1.3 HP Universal motor (230V– 50/60 Hz 7.2A) -> 87-92 dB
- Output: 3.7l/min – 0.64 l/min
- Weight: 17.7kg (w/o oil).
- 1.9 l hydraulic oil/ 1.5 l usable oil capacity
- Detachable, calibratable 100 mm gauge

Separate cooler with fan
The 2-speed PE45 pump provides continuous pressure (from low to
high pressure stage) for up to two times the speed of typical 2-stage
pumps!

- Improved oil filtration
- 1.8 HP Universal motor (230V – 50/60 Hz 8.5A) -> 87 – 92 dB
- Output: 9.4 l/min – 0.8 l/min
- Weight: 32kg
- Oil: 6.75 l / Usable oil capacity: 5.1 l

Separate cooler with fan

PE55 PE39 PE45
