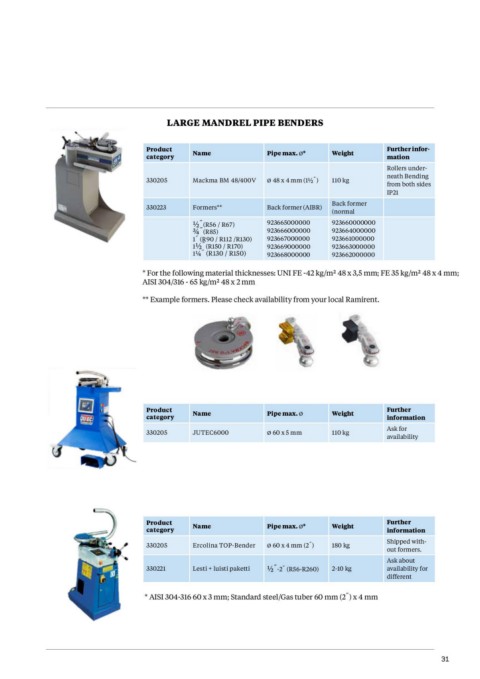

LARGE MANDREL PIPE BENDERS
Product Name Pipe max. Ø* Weight Further infor-
category mation
Mackma BM 48/400V Ø 48 x 4 mm (1½�) 110 kg
330205 Rollers under-
Formers** Back former (AIBR) Back former neath Bending
330223 923665000000 (normal from both sides
½�(R56 / R67) 923666000000 923660000000 IP21
¾�(R85) 923667000000 923664000000
923669000000 923661000000
1� (R90 / R112 /R130) 923668000000 923663000000
923662000000
1½�(R150 / R170)
1¼� (R130 / R150)
* For the following material thicknesses: UNI FE -42 kg/m² 48 x 3,5 mm; FE 35 kg/m² 48 x 4 mm;
AISI 304/316 - 65 kg/m² 48 x 2 mm
** Example formers. Please check availability from your local Ramirent.
Product Name Pipe max. Ø Weight Further
category JUTEC6000 Ø 60 x 5 mm 110 kg information
330205 Ask for
availability
Product Name Pipe max. Ø* Weight Further
category 180 kg information
Ercolina TOP-Bender Ø 60 x 4 mm (2�)
330205 Shipped with-
out formers.
330221 Lesti + luisti paketti ½�-2� (R56-R260) 2-10 kg
Ask about
availability for
different
* AISI 304-316 60 x 3 mm; Standard steel/Gas tuber 60 mm (2�) x 4 mm
