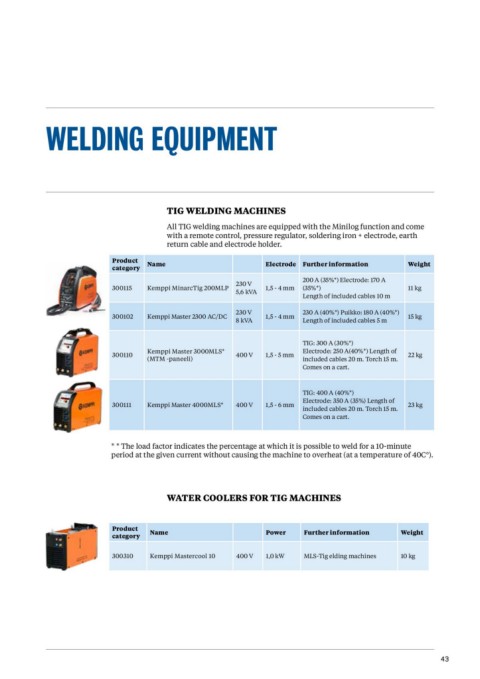

Page 43 - Teollisuuden-tuoteluettelo_englanti

WELDING EQUIPMENT

TIG WELDING MACHINES

All TIG welding machines are equipped with the Minilog function and come
with a remote control, pressure regulator, soldering iron + electrode, earth
return cable and electrode holder.

Product Name Electrode Further information Weight
category 11 kg

300115 Kemppi MinarcTig 200MLP 230 V 1,5 - 4 mm 200 A (35%*) Electrode: 170 A
5,6 kVA (35%*)
Length of included cables 10 m

300102 Kemppi Master 2300 AC/DC 230 V 1,5 - 4 mm 230 A (40%*) Puikko: 180 A (40%*) 15 kg
8 kVA Length of included cables 5 m

300110 Kemppi Master 3000MLS* 400 V 1,5 - 5 mm TIG: 300 A (30%*) 22 kg
(MTM -paneeli) Electrode: 250 A(40%*) Length of
included cables 20 m. Torch 15 m.
Comes on a cart.

300111 Kemppi Master 4000MLS* 400 V 1,5 - 6 mm TIG: 400 A (40%*) 23 kg
Electrode: 350 A (35%) Length of
included cables 20 m. Torch 15 m.
Comes on a cart.

* * The load factor indicates the percentage at which it is possible to weld for a 10-minute
period at the given current without causing the machine to overheat (at a temperature of 40C°).

WATER COOLERS FOR TIG MACHINES

Product Name Power Further information Weight
category 10 kg

300310 Kemppi Mastercool 10 400 V 1,0 kW MLS-Tig elding machines

43
