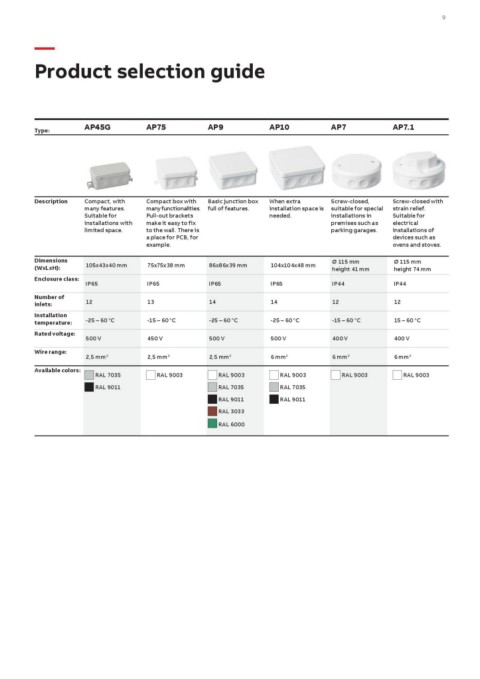

Product selection guide
Type: AP45G AP75 AP9 AP10 AP7 AP7.1
Description Compact, with Compact box with Basic junction box When extra Screw-closed, Screw-closed with
many features. many functionalities. full of features. installation space is suitable for special strain relief.
Suitable for Pull-out brackets needed. installations in Suitable for
installations with make it easy to fix premises such as electrical
limited space. to the wall. There is parking garages. installations of
a place for PCB, for devices such as
example. ovens and stoves.
Dimensions 105x43x40 mm 75x75x38 mm 86x86x39 mm 104x104x48 mm Ø 115 mm Ø 115 mm
(WxLxH): IP65 IP65 IP65 height 41 mm height 74 mm
Enclosure class: IP65 IP44 IP44
Number of 12 13 14 14 12 12
inlets: -25 – 60 °C
500 V -15 – 60 °C -25 – 60 °C -25 – 60 °C -15 – 60 °C 15 – 60 °C
Installation
temperature: 450 V 500 V 500 V 400 V 400 V
Rated voltage:
Wire range: 2,5 mm2 2,5 mm2 2,5 mm2 6 mm2 6 mm2 6 mm2
Available colors: RAL 7035 RAL 9003 RAL 9003 RAL 9003 RAL 9003 RAL 9003
RAL 9011 RAL 7035 RAL 7035
RAL 9011 RAL 9011
RAL 3033
RAL 6000
