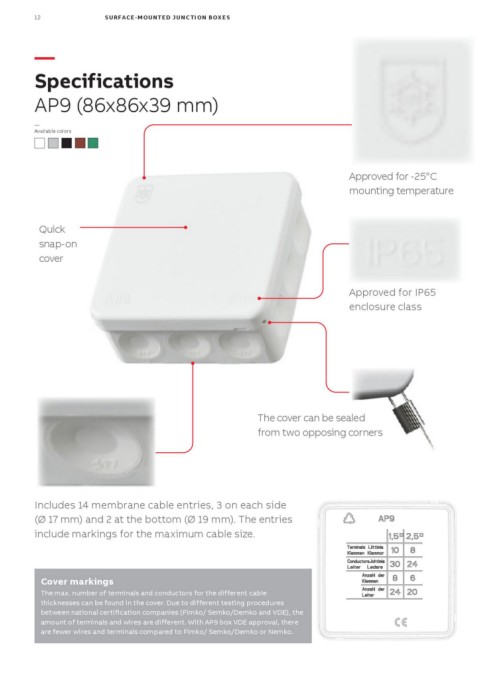

12 SURFACE-MOUNTED JUNCTION BOXES  Approved for -25°C
                                   mounting temperature
—
Specifications                     Approved for IP65
AP9 (86x86x39 mm)                  enclosure class

—
Available colors

 Quick
 snap-on
 cover

                                                                The cover can be sealed
                                                                from two opposing corners

Includes 14 membrane cable entries, 3 on each side
(Ø 17 mm) and 2 at the bottom (Ø 19 mm). The entries
include markings for the maximum cable size.

 Cover markings

  The max. number of terminals and conductors for the different cable
  thicknesses can be found in the cover. Due to different testing procedures
  between national certification companies (Fimko/ Semko/Demko and VDE), the
  amount of terminals and wires are different. With AP9 box VDE approval, there
  are fewer wires and terminals compared to Fimko/ Semko/Demko or Nemko.
  .
