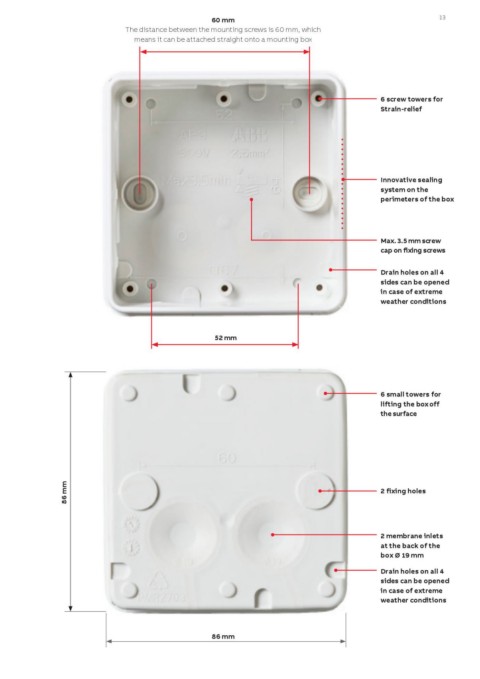

60 mm 13
The distance between the mounting screws is 60 mm, which
6 screw towers for
means it can be attached straight onto a mounting box Strain-relief

52 mm Innovative sealing
system on the
perimeters of the box

Max. 3.5 mm screw
cap on fixing screws
Drain holes on all 4
sides can be opened
in case of extreme
weather conditions

6 small towers for
lifting the box off
the surface

86 mm 2 fixing holes

2 membrane inlets
at the back of the
box Ø 19 mm
Drain holes on all 4
sides can be opened
in case of extreme
weather conditions

86 mm
