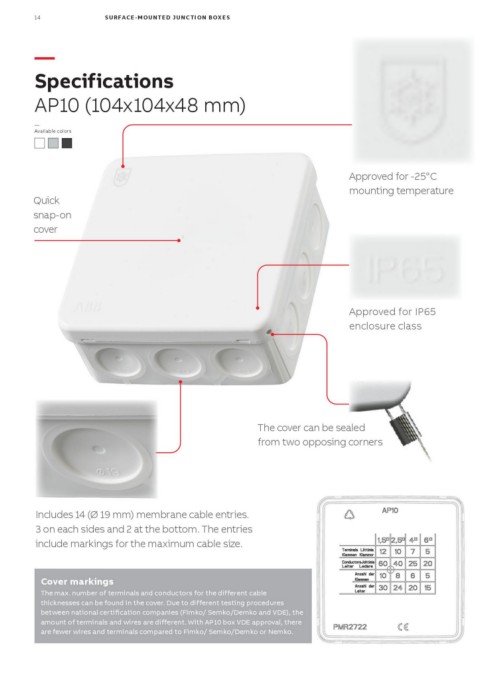

Page 14 - ABB_Surface-mounted_junction_boxes
P. 14
14 SURFACE-MOUNTED JUNCTION BOXES Approved for -25°C
mounting temperature
—
Specifications Approved for IP65
AP10 (104x104x48 mm) enclosure class
—
Available colors
Quick
snap-on
cover
The cover can be sealed
from two opposing corners
Includes 14 (Ø 19 mm) membrane cable entries.
3 on each sides and 2 at the bottom. The entries
include markings for the maximum cable size.
Cover markings
The max. number of terminals and conductors for the different cable
thicknesses can be found in the cover. Due to different testing procedures
between national certification companies (Fimko/ Semko/Demko and VDE), the
amount of terminals and wires are different. With AP10 box VDE approval, there
are fewer wires and terminals compared to Fimko/ Semko/Demko or Nemko.
.
