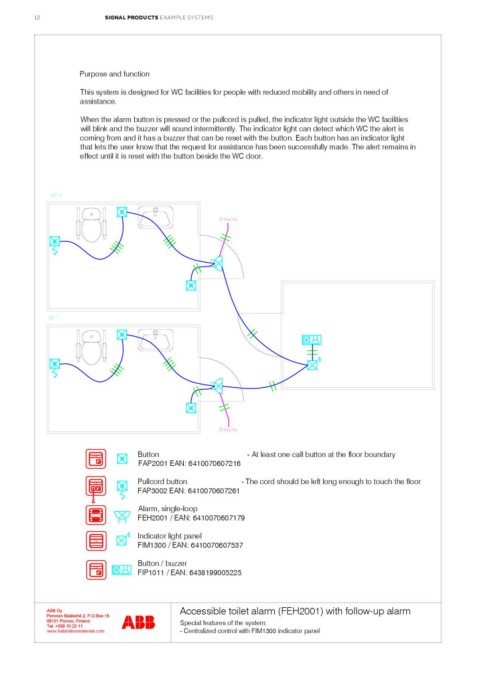

12 SIGNAL PRODUCTS EXAMPLE SYSTEMS

Purpose and function
This system is designed for WC facilities for people with reduced mobility and others in need of
assistance.
When the alarm button is pressed or the pullcord is pulled, the indicator light outside the WC facilities
will blink and the buzzer will sound intermittently. The indicator light can detect which WC the alert is
coming from and it has a buzzer that can be reset with the button. Each button has an indicator light
that lets the user know that the request for assistance has been successfully made. The alert remains in
effect until it is reset with the button beside the WC door.

Button - At least one call button at the floor boundary
FAP2001 EAN: 6410070607216

Pullcord button - The cord should be left long enough to touch the floor

FAP3002 EAN: 6410070607261

Alarm, single-loop
FEH2001 / EAN: 6410070607179

Indicator light panel
FIM1300 / EAN: 6410070607537

Button / buzzer
FIP1011 / EAN: 6438199005225

www.installationmaterials.com Accessible toilet alarm (FEH2001) with follow-up alarm

Special features of the system:
- Centralized control with FIM1300 indicator panel
