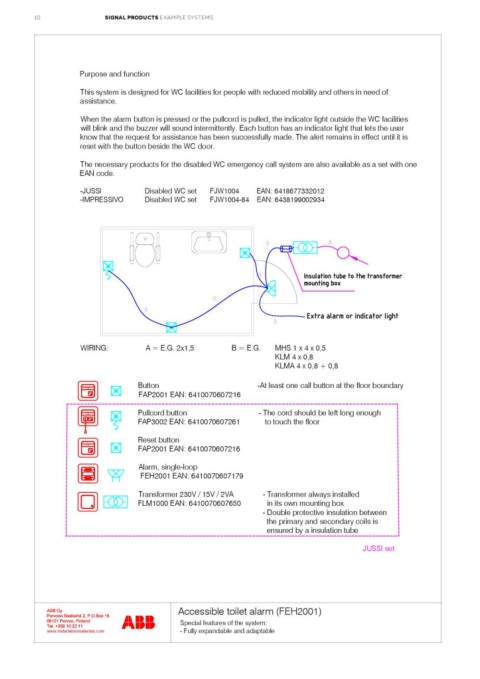

10 SIGNAL PRODUCTS EXAMPLE SYSTEMS

Purpose and function

This system is designed for WC facilities for people with reduced mobility and others in need of
assistance.

When the alarm button is pressed or the pullcord is pulled, the indicator light outside the WC facilities
will blink and the buzzer will sound intermittently. Each button has an indicator light that lets the user
know that the request for assistance has been successfully made. The alert remains in effect until it is
reset with the button beside the WC door.

The necessary products for the disabled WC emergency call system are also available as a set with one
EAN code.

-JUSSI Disabled WC set FJW1004 EAN: 6418677332012
-IMPRESSIVO Disabled WC set FJW1004-84 EAN: 6438199002934

WIRING: A = E.G. 2x1,5 B = E.G. MHS 1 x 4 x 0,5
KLM 4 x 0,8
KLMA 4 x 0,8 + 0,8

Button -At least one call button at the floor boundary
FAP2001 EAN: 6410070607216 - The cord should be left long enough

Pullcord button to touch the floor
FAP3002 EAN: 6410070607261
- Transformer always installed
Reset button in its own mounting box
FAP2001 EAN: 6410070607216
- Double protective insulation between
Alarm, single-loop the primary and secondary coils is
FEH2001 EAN: 6410070607179 ensured by a insulation tube

Transformer 230V / 15V / 2VA
FLM1000 EAN: 6410070607650

JUSSI set

www.installationmaterials.com Accessible toilet alarm (FEH2001)

Special features of the system:
- Fully expandable and adaptable
