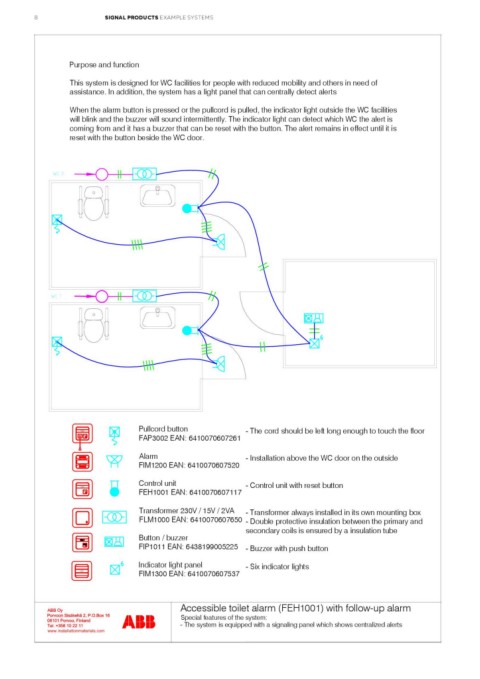

8 SIGNAL PRODUCTS EXAMPLE SYSTEMS

Purpose and function
This system is designed for WC facilities for people with reduced mobility and others in need of
assistance. In addition, the system has a light panel that can centrally detect alerts
When the alarm button is pressed or the pullcord is pulled, the indicator light outside the WC facilities
will blink and the buzzer will sound intermittently. The indicator light can detect which WC the alert is
coming from and it has a buzzer that can be reset with the button. The alert remains in effect until it is
reset with the button beside the WC door.

Pullcord button - The cord should be left long enough to touch the floor
FAP3002 EAN: 6410070607261

Alarm - Installation above the WC door on the outside
FIM1200 EAN: 6410070607520

Control unit - Control unit with reset button
FEH1001 EAN: 6410070607117

Transformer 230V / 15V / 2VA - Transformer always installed in its own mounting box
FLM1000 EAN: 6410070607650 - Double protective insulation between the primary and
secondary coils is ensured by a insulation tube
Button / buzzer
FIP1011 EAN: 6438199005225 - Buzzer with push button

Indicator light panel - Six indicator lights

FIM1300 EAN: 6410070607537

Accessible toilet alarm (FEH1001) with follow-up alarm

Special features of the system:
- The system is equipped with a signaling panel which shows centralized alerts
