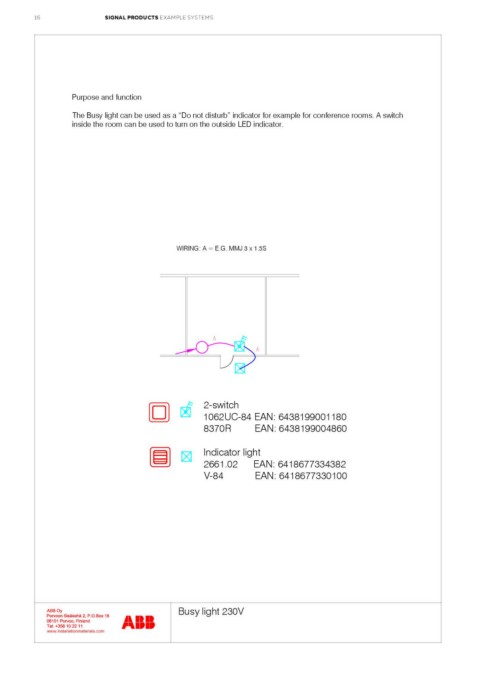

16 SIGNAL PRODUCTS EXAMPLE SYSTEMS
Purpose and function
The Busy light can be used as a “Do not disturb” indicator for example for conference rooms. A switch
inside the room can be used to turn on the outside LED indicator.
WIRING: A = E.G. MMJ 3 x 1.5S
2-switch
1062UC-84 EAN: 6438199001180
8370R EAN: 6438199004860
Indicator light
2661.02 EAN: 6418677334382
V-84 EAN: 6418677330100
Busy light 230V
