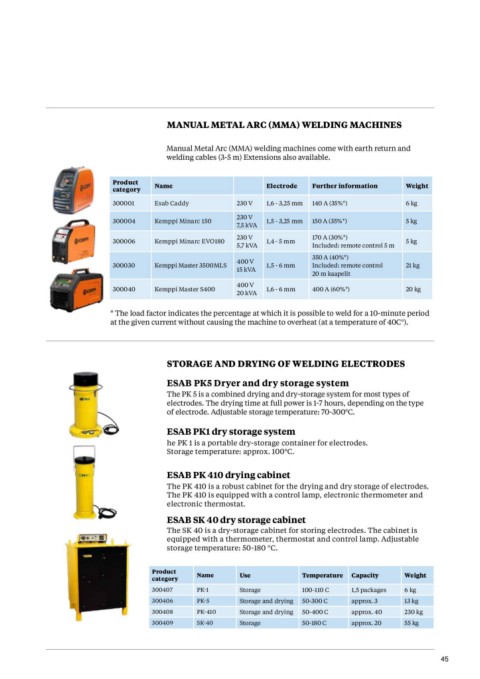

Page 45 - Teollisuuden-tuoteluettelo_englanti

MANUAL METAL ARC (MMA) WELDING MACHINES

Manual Metal Arc (MMA) welding machines come with earth return and
welding cables (3-5 m) Extensions also available.

Product Name Electrode Further information Weight
category
300001 Esab Caddy 230 V 1,6 - 3,25 mm 140 A (35%*) 6 kg
300004 Kemppi Minarc 150 5 kg
Kemppi Minarc EVO180 230 V 1,5 - 3,25 mm 150 A (35%*) 5 kg
300006 Kemppi Master 3500MLS 7,5 kVA 1,4 - 5 mm 21 kg
Kemppi Master S400 170 A (30%*) 20 kg
300030 230 V Included: remote control 5 m
5,7 kVA 350 A (40%*)
300040 Included: remote control
400 V 1,5 - 6 mm 20 m kaapelit
15 kVA
400 A (60%*)
400 V 1,6 - 6 mm
20 kVA

* The load factor indicates the percentage at which it is possible to weld for a 10-minute period
at the given current without causing the machine to overheat (at a temperature of 40C°).

STORAGE AND DRYING OF WELDING ELECTRODES

ESAB PK5 Dryer and dry storage system

The PK 5 is a combined drying and dry-storage system for most types of
electrodes. The drying time at full power is 1-7 hours, depending on the type
of electrode. Adjustable storage temperature: 70-300°C.

ESAB PK1 dry storage system

he PK 1 is a portable dry-storage container for electrodes.
Storage temperature: approx. 100°C.

ESAB PK 410 drying cabinet

The PK 410 is a robust cabinet for the drying and dry storage of electrodes.
The PK 410 is equipped with a control lamp, electronic thermometer and
electronic thermostat.

ESAB SK 40 dry storage cabinet

The SK 40 is a dry-storage cabinet for storing electrodes. The cabinet is
equipped with a thermometer, thermostat and control lamp. Adjustable
storage temperature: 50-180 °C.

Product Name Use Temperature Capacity Weight
category
300407 PK-1 Storage 100-110 C 1,5 packages 6 kg
300406 PK-5 Storage and drying 50-300 C approx. 3 13 kg
300408 PK-410 Storage and drying 50-400 C approx. 40 230 kg
300409 SK-40 Storage 50-180 C approx. 20 55 kg

45
