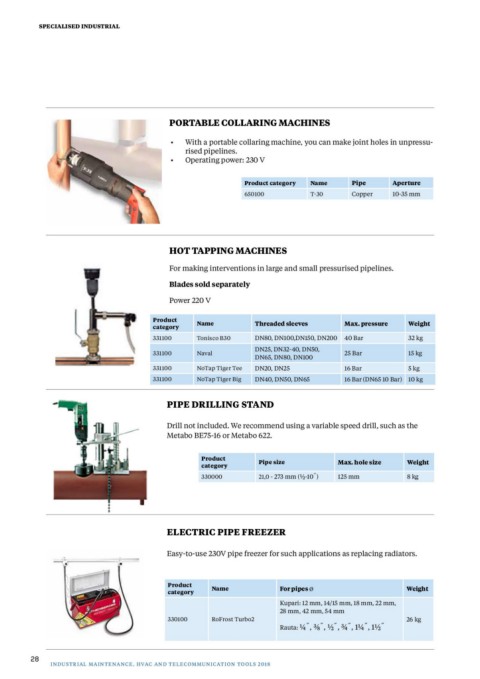

Page 28 - Teollisuuden-tuoteluettelo_englanti
P. 28
SPECIALISED INDUSTRIAL
PORTABLE COLLARING MACHINES
• With a portable collaring machine, you can make joint holes in unpressu-
rised pipelines.
• Operating power: 230 V
Product category Name Pipe Aperture
650100 T-30 Copper 10-35 mm
HOT TAPPING MACHINES
For making interventions in large and small pressurised pipelines.
Blades sold separately
Power 220 V
Product Name Threaded sleeves Max. pressure Weight
category Tonisco B30
331100 Naval DN80, DN100,DN150, DN200 40 Bar 32 kg
NoTap Tiger Tee
331100 NoTap Tiger Big DN25, DN32-40, DN50, 25 Bar 15 kg
DN65, DN80, DN100
331100
331100 DN20, DN25 16 Bar 5 kg
DN40, DN50, DN65 16 Bar (DN65 10 Bar) 10 kg
PIPE DRILLING STAND
Drill not included. We recommend using a variable speed drill, such as the
Metabo BE75-16 or Metabo 622.
Product Pipe size Max. hole size Weight
category 21,0 - 273 mm (½-10�) 125 mm 8 kg
330000
ELECTRIC PIPE FREEZER
Easy-to-use 230V pipe freezer for such applications as replacing radiators.
Product Name For pipes Ø Weight
category
330100 RoFrost Turbo2 Kupari: 12 mm, 14/15 mm, 18 mm, 22 mm, 26 kg
28 mm, 42 mm, 54 mm
Rauta: ¼�, ⅜�, ½�, ¾�, 1¼�, 1½�
28
INDUSTRIAL MAINTENANCE, HVAC AND TELECOMMUNICATION TOOLS 2018
