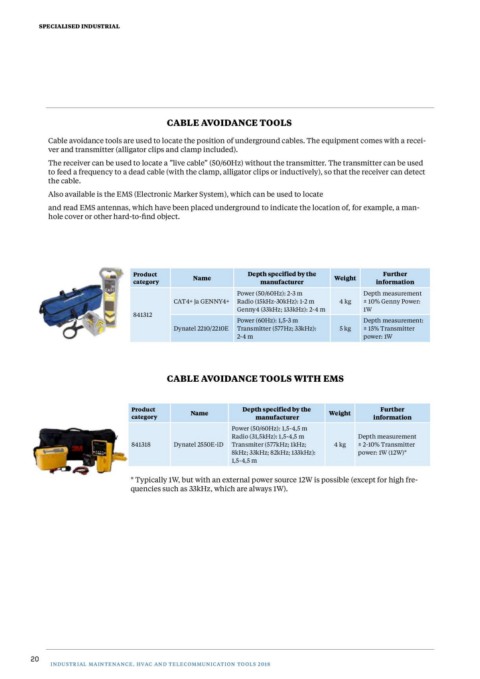

SPECIALISED INDUSTRIAL

CABLE AVOIDANCE TOOLS

Cable avoidance tools are used to locate the position of underground cables. The equipment comes with a recei-
ver and transmitter (alligator clips and clamp included).

The receiver can be used to locate a ”live cable” (50/60Hz) without the transmitter. The transmitter can be used
to feed a frequency to a dead cable (with the clamp, alligator clips or inductively), so that the receiver can detect
the cable.

Also available is the EMS (Electronic Marker System), which can be used to locate

and read EMS antennas, which have been placed underground to indicate the location of, for example, a man-
hole cover or other hard-to-find object.

Product Name Depth specified by the Weight Further
category CAT4+ ja GENNY4+ manufacturer information
Dynatel 2210/2210E
841312 Power (50/60Hz): 2-3 m Depth measurement
Radio (15kHz-30kHz): 1-2 m 4 kg ± 10% Genny Power:
Genny4 (33kHz; 133kHz): 2-4 m
1W
Power (60Hz): 1,5-3 m
Transmitter (577Hz; 33kHz): Depth measurement:
2-4 m 5 kg ± 15% Transmitter

power: 1W

CABLE AVOIDANCE TOOLS WITH EMS

Product Name Depth specified by the Weight Further
category Dynatel 2550E-iD manufacturer information

841318 Power (50/60Hz): 1,5-4,5 m Depth measurement
Radio (31,5kHz): 1,5-4,5 m 4 kg ± 2-10% Transmitter
Transmiter (577kHz; 1kHz;
8kHz; 33kHz; 82kHz; 133kHz): power: 1W (12W)*
1,5-4,5 m

* Typically 1W, but with an external power source 12W is possible (except for high fre-
quencies such as 33kHz, which are always 1W).
