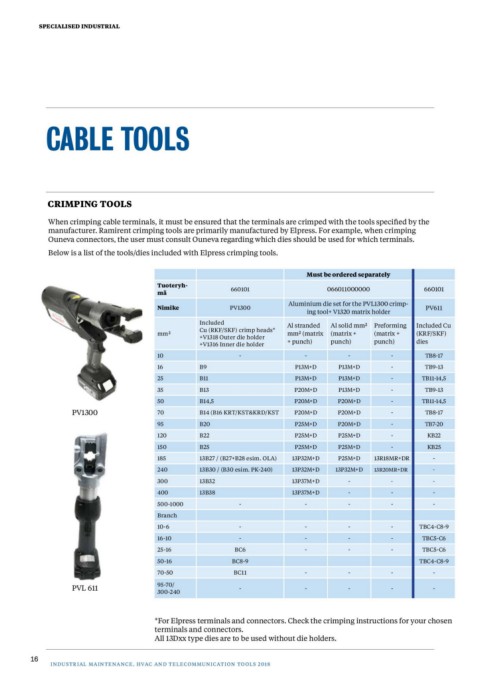

SPECIALISED INDUSTRIAL

CABLE TOOLS

CRIMPING TOOLS

When crimping cable terminals, it must be ensured that the terminals are crimped with the tools specified by the
manufacturer. Ramirent crimping tools are primarily manufactured by Elpress. For example, when crimping
Ouneva connectors, the user must consult Ouneva regarding which dies should be used for which terminals.

Below is a list of the tools/dies included with Elpress crimping tools.

Must be ordered separately

Tuoteryh- 660101 066011000000 660101
mä
PV1300 Aluminium die set for the PVL1300 crimp- PV611
Nimike ing tool+ V1320 matrix holder
Included
mm² Cu (RKF/SKF) crimp heads* Al stranded Al solid mm² Preforming Included Cu
+V1318 Outer die holder mm² (matrix (matrix + (matrix + (KRF/SKF)
10 +V1316 Inner die holder + punch) punch) punch) dies
16
PV1300 25 - - - - TB8-17
PVL 611 35 B9 P13M+D P13M+D - TB9-13
50 B11 P13M+D P13M+D - TB11-14,5
70 B13 P20M+D P13M+D - TB9-13
95 B14,5 P20M+D P20M+D - TB11-14,5
120 B14 (B16 KRT/KST&KRD/KST P20M+D P20M+D - TB8-17
150 B20 P25M+D P20M+D - TB7-20
185 B22 P25M+D P25M+D - KB22
240 B25 P25M+D P25M+D - KB25
300 13B27 / (B27+B28 esim. OLA) 13P32M+D P25M+D 13R18MR+DR
400 13B30 / (B30 esim. PK-240) 13P32M+D 13P32M+D 13R20MR+DR -
500-1000 13B32 13P37M+D - -
Branch 13B38 13P37M+D - - -
10-6 - - -
16-10 - - - -
25-16
50-16 - - - - TBC4-C8-9
70-50 - - - - TBC5-C6
95-70/ BC6 - - - TBC5-C6
300-240 BC8-9
BC11 TBC4-C8-9
- - --
-
- - --

*For Elpress terminals and connectors. Check the crimping instructions for your chosen
terminals and connectors.
All 13Dxx type dies are to be used without die holders.
