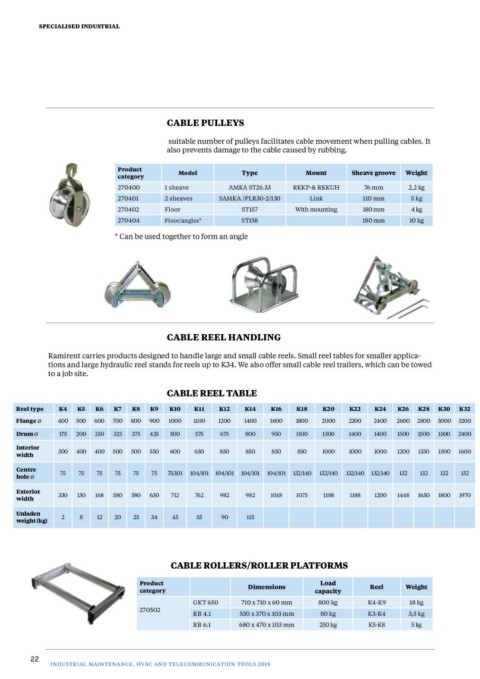

Page 22 - Teollisuuden-tuoteluettelo_englanti
P. 22
SPECIALISED INDUSTRIAL
CABLE PULLEYS
suitable number of pulleys facilitates cable movement when pulling cables. It
also prevents damage to the cable caused by rubbing.
Product Model Type Mount Sheave groove Weight
category
270400 1 sheave AMKA ST26.33 RKKP-& RKKUH 76 mm 2,2 kg
270401 2 sheaves SAMKA /PLR30-2/130 Link 110 mm 5 kg
270402 Floor 180 mm 4 kg
270404 Floor/angles* ST157 With mounting 180 mm 10 kg
ST158
* Can be used together to form an angle
CABLE REEL HANDLING
Ramirent carries products designed to handle large and small cable reels. Small reel tables for smaller applica-
tions and large hydraulic reel stands for reels up to K34. We also offer small cable reel trailers, which can be towed
to a job site.
CABLE REEL TABLE
Reel type K4 K5 K6 K7 K8 K9 K10 K11 K12 K14 K16 K18 K20 K22 K24 K26 K28 K30 K32
Flange Ø 400 500 600 700 800 900 1000 1100 1200 1400 1600 1800 2000 2200 2400 2600 2800 3000 3200
Drum Ø 175 200 250 325 375 425 500 575 675 800 950 1100 1300 1400 1400 1500 1500 1500 2400
Interior 300 400 400 500 500 550 600 650 850 850 850 850 1000 1000 1000 1200 1350 1500 1600
width
Centre 75 75 75 75 75 75 75/101 104/101 104/101 104/101 104/101 132/140 132/140 132/140 132/140 132 132 132 132
hole Ø
Exterior 330 130 168 580 580 630 712 762 982 982 1018 1075 1188 1188 1200 1448 1650 1800 1970
width
Unladen 2 8 12 20 25 34 45 55 90 115
weight (kg)
CABLE ROLLERS/ROLLER PLATFORMS
Product GKT 650 Dimensions Load Reel Weight
category RB 4.1 capacity
RB 6.1 710 x 710 x 60 mm K4-K9 18 kg
270502 530 x 370 x 103 mm 800 kg K3-K4 3,5 kg
680 x 470 x 103 mm K5-K8 5 kg
80 kg
250 kg
