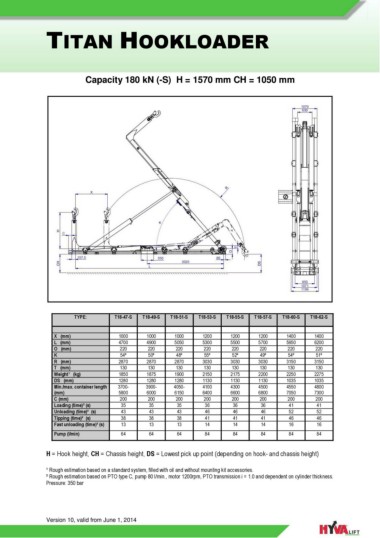

TITAN HOOKLOADER

Capacity 180 kN (-S) H = 1570 mm CH = 1050 mm

TYPE: T18-47-S T18-49-S T18-51-S T18-53-S T18-55-S T18-57-S T18-60-S T18-62-S

X (mm) 1000 1000 1000 1200 1200 1200 1400 1400

L (mm) 4700 4900 5050 5300 5500 5700 5950 6200

O (mm) 220 220 220 220 220 220 220 220

K 54º 50º 48º 55º 52º 49º 54º 51º

R (mm) 2870 2870 2870 3030 3030 3030 3150 3150

T (mm) 130 130 130 130 130 130 130 130

Weight¹ (kg) 1850 1875 1900 2150 2175 2200 2250 2275

DS (mm) 1280 1280 1280 1130 1130 1130 1035 1035

Min./max. container length 3700- 3900- 4050- 4100 4300 4500 4550 4800

(mm) 5800 6000 6150 6400 6600 6800 7050 7300

C (mm) 200 200 200 200 200 200 200 200

Loading (time)² (s) 35 35 35 36 36 36 41 41

Unloading (time)² (s) 43 43 43 46 46 46 52 52

Tipping (time)² (s) 38 38 38 41 41 41 46 46

Fast unloading (time)² (s) 13 13 13 14 14 14 16 16

Pump (l/min) 64 64 64 84 84 84 84 84

H = Hook height, CH = Chassis height, DS = Lowest pick up point (depending on hook- and chassis height)

¹ Rough estimation based on a standard system, filled with oil and without mounting kit accessories.
² Rough estimation based on PTO type C, pump 80 l/min., motor 1200rpm, PTO transmission i = 1.0 and dependent on cylinder thickness.
Pressure: 350 bar

Version 10, valid from June 1, 2014
