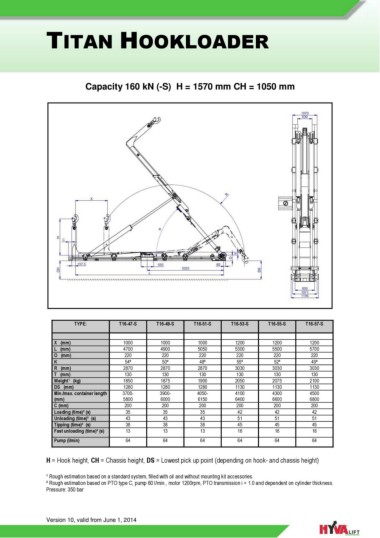

TITAN HOOKLOADER

Capacity 160 kN (-S) H = 1570 mm CH = 1050 mm

TYPE: T16-47-S T16-49-S T16-51-S T16-53-S T16-55-S T16-57-S

X (mm) 1000 1000 1000 1200 1200 1200

L (mm) 4700 4900 5050 5300 5500 5700

O (mm) 220 220 220 220 220 220

K 54º 50º 48º 55º 52º 49º

R (mm) 2870 2870 2870 3030 3030 3030

T (mm) 130 130 130 130 130 130

Weight¹ (kg) 1850 1875 1900 2050 2075 2100

DS (mm) 1280 1280 1280 1130 1130 1130

Min./max. container length 3700- 3900- 4050- 4100 4300 4500

(mm) 5800 6000 6150 6400 6600 6800

C (mm) 200 200 200 200 200 200

Loading (time)² (s) 35 35 35 42 42 42

Unloading (time)² (s) 43 43 43 51 51 51

Tipping (time)² (s) 38 38 38 45 45 45

Fast unloading (time)² (s) 13 13 13 16 16 16

Pump (l/min) 64 64 64 64 64 64

H = Hook height, CH = Chassis height, DS = Lowest pick up point (depending on hook- and chassis height)

¹ Rough estimation based on a standard system, filled with oil and without mounting kit accessories.
² Rough estimation based on PTO type C, pump 60 l/min., motor 1200rpm, PTO transmission i = 1.0 and dependent on cylinder thickness.
Pressure: 350 bar

Version 10, valid from June 1, 2014
