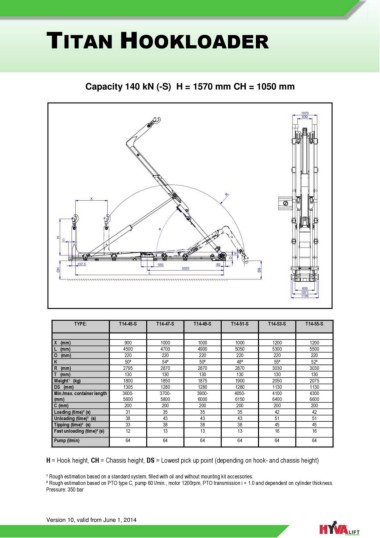

TITAN HOOKLOADER

Capacity 140 kN (-S) H = 1570 mm CH = 1050 mm

TYPE: T14-45-S T14-47-S T14-49-S T14-51-S T14-53-S T14-55-S

X (mm) 900 1000 1000 1000 1200 1200

L (mm) 4500 4700 4900 5050 5300 5500

O (mm) 220 220 220 220 220 220

K 50º 54º 50º 48º 55º 52º

R (mm) 2795 2870 2870 2870 3030 3030

T (mm) 130 130 130 130 130 130

Weight¹ (kg) 1800 1850 1875 1900 2050 2075

DS (mm) 1305 1280 1280 1280 1130 1130

Min./max. container length 3600- 3700- 3900- 4050- 4100 4300

(mm) 5600 5800 6000 6150 6400 6600

C (mm) 200 200 200 200 200 200

Loading (time)² (s) 31 35 35 35 42 42

Unloading (time)² (s) 38 43 43 43 51 51

Tipping (time)² (s) 33 38 38 38 45 45

Fast unloading (time)² (s) 12 13 13 13 16 16

Pump (l/min) 64 64 64 64 64 64

H = Hook height, CH = Chassis height, DS = Lowest pick up point (depending on hook- and chassis height)

¹ Rough estimation based on a standard system, filled with oil and without mounting kit accessories.
² Rough estimation based on PTO type C, pump 60 l/min., motor 1200rpm, PTO transmission i = 1.0 and dependent on cylinder thickness.
Pressure: 350 bar

Version 10, valid from June 1, 2014
