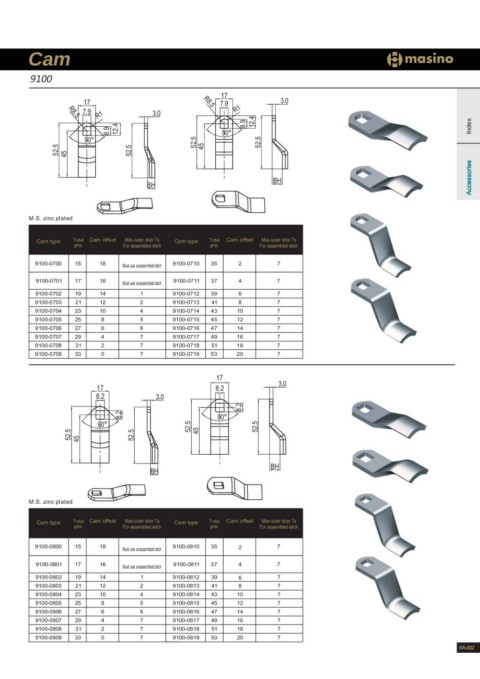

P. 193
Cam R8.5 17 3.0
R8.5 7.9 R1
9100 3.0 90°
17
7.9 R1
90°
52.5 Index
45
8.9
12.4
52.5
4552.5
8.9
52.5 12.4
BH BH Accessories
M.S. zinc plated
Cam type Total Cam offset Max.outer door Ts Cam type Total Cam offset Max.outer door Ts
grip For assembled latch grip For assembled latch
9100-0700 15 18 Must use unassembled latch 9100-0710 35 2 7
9100-0701 17 16 Must use unassembled latch 9100-0711 37 4 7
9100-0702 19 14 1 9100-0712 39 6 7
9100-0703 21 8 7
9100-0704 23 12 2 9100-0713 41 10 7
9100-0705 25 12 7
9100-0706 27 10 4 9100-0714 43 14 7
9100-0707 29 16 7
9100-0708 31 8 5 9100-0715 45 18 7
9100-0709 33 20 7
6 6 9100-0716 47
4 7 9100-0717 49
2 7 9100-0718 51
0 7 9100-0719 53
17 3.0
17 8.2
8.2 3.0
52.5
45
8.2
52.5
52.5
45
8.2
52.5
90° 90°
BH BH
M.S. zinc plated
Cam type Total Cam offset Max.outer door Ts Cam type Total Cam offset Max.outer door Ts
grip For assembled latch grip For assembled latch
9100-0800 15 18 Must use unassembled latch 9100-0810 35 2 7
9100-0801 17 16 Must use unassembled latch 9100-0811 37 4 7
9100-0802 19 14 1 9100-0812 39 6 7
9100-0803 21 12 2 9100-0813 41 8 7
9100-0804 23 10 4 9100-0814 43 10 7
9100-0805 25 8 5 9100-0815 45 12 7
9100-0806 27 6 6 9100-0816 47 14 7
9100-0807 29 4 7 9100-0817 49 16 7
9100-0808 31 2 7 9100-0818 51 18 7
9100-0809 33 0 7 9100-0819 53 20 7
9A-002
