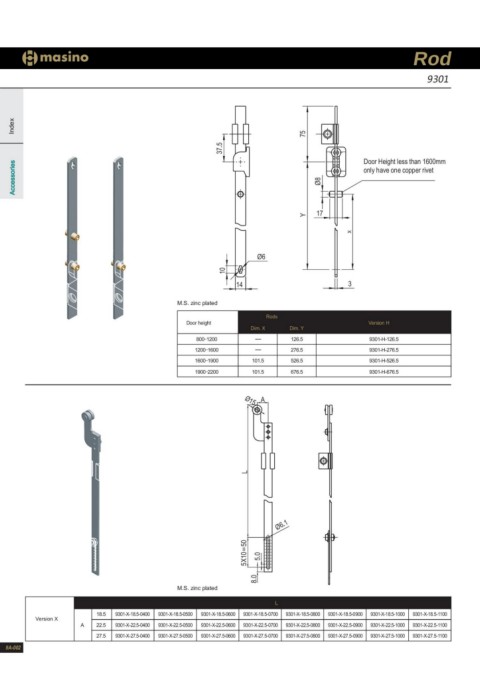

Rod
9301

Index 10 37.5
Y 75
Accessories Ø8 Door Height less than 1600mm
only have one copper rivet
X
17

Ø6

14 3

M.S. zinc plated Rods Dim. Y Version H
Dim. X 126.5 9301-H-126.5
Door height 276.5 9301-H-276.5
101.5 526.5 9301-H-526.5
800-1200 101.5 676.5 9301-H-676.5
1200-1600
1600-1900
1900-2200

Ø15 A

5X10=50 L Ø6.1
8.0 5.0

Version X M.S. zinc plated
9A-002
L
18.5 9301-X-18.5-0400 9301-X-18.5-0500 9301-X-18.5-0600 9301-X-18.5-0700 9301-X-18.5-0800 9301-X-18.5-0900 9301-X-18.5-1000 9301-X-18.5-1100
A 22.5 9301-X-22.5-0400 9301-X-22.5-0500 9301-X-22.5-0600 9301-X-22.5-0700 9301-X-22.5-0800 9301-X-22.5-0900 9301-X-22.5-1000 9301-X-22.5-1100
27.5 9301-X-27.5-0400 9301-X-27.5-0500 9301-X-27.5-0600 9301-X-27.5-0700 9301-X-27.5-0800 9301-X-27.5-0900 9301-X-27.5-1000 9301-X-27.5-1100
