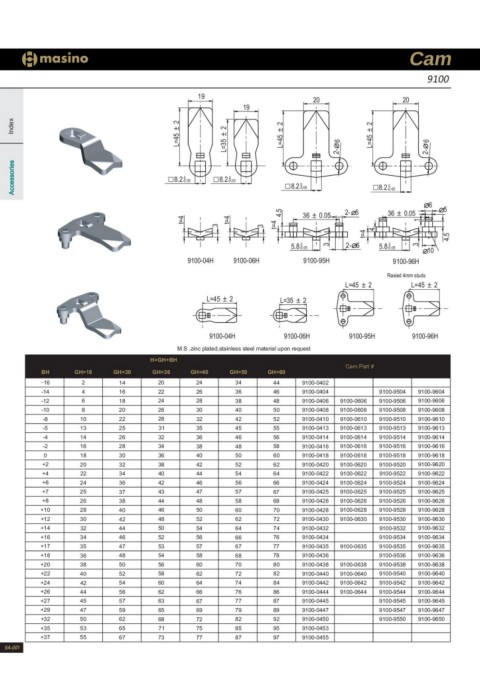

19 20 Cam
19 9100

20

Index L=45 ± 2
L=35 ± 2

L=45 ± 2
2- 6

L=45 ± 2
2- 6

Accessories □8.2-00.05 □8.2-00.05 □8.2-00.05 □8.2-00.05

36 ± 0.05 2- 5 36 ± 0.05 65
t=4
3
t=4
3
t=4 4.5
3
t=4
4
31
4.5
5.8-00.05 2- 6 5.8-00.05 10
9100-95H 9100-96H
9100-04H 9100-06H
L=35 ± 2
L=45 ± 2 Rasied 4mm studs

L=45 ± 2

L=45 ± 2

9100-04H 9100-06H 9100-95H 9100-96H

M.S .zinc plated,stainless steel material upon request

H=GH+BH Cam Part #

BH GH=18 GH=30 GH=36 GH=40 GH=50 GH=60 9100-0402 9100-0606 9100-9504 9100-9604
9100-0404 9100-0608 9100-9506 9100-9606
-16 2 14 20 24 34 44 9100-0406 9100-0610 9100-9508 9100-9608
-14 4 16 22 26 36 46 9100-0408 9100-0613 9100-9510 9100-9610
-12 6 18 24 28 38 48 9100-0410 9100-0614 9100-9513 9100-9613
-10 8 20 26 30 40 50 9100-0413 9100-0616 9100-9514 9100-9614
-8 10 22 28 32 42 52 9100-0414 9100-0618 9100-9516 9100-9616
-5 13 25 31 35 45 55 9100-0416 9100-0620 9100-9518 9100-9618
-4 14 26 32 36 46 56 9100-0418 9100-0622 9100-9520 9100-9620
-2 16 28 34 38 48 58 9100-0420 9100-0624 9100-9522 9100-9622
0 18 30 36 40 50 60 9100-0422 9100-0625 9100-9524 9100-9624
+2 20 32 38 42 52 62 9100-0424 9100-0626 9100-9525 9100-9625
+4 22 34 40 44 54 64 9100-0425 9100-0628 9100-9526 9100-9626
+6 24 36 42 46 56 66 9100-0426 9100-0630 9100-9528 9100-9628
+7 25 37 43 47 57 67 9100-0428 9100-9530 9100-9630
+8 26 38 44 48 58 68 9100-0430 9100-0635 9100-9532 9100-9632
+10 28 40 46 50 60 70 9100-0432 9100-9534 9100-9634
+12 30 42 48 52 62 72 9100-0434 9100-0638 9100-9535 9100-9635
+14 32 44 50 54 64 74 9100-0435 9100-0640 9100-9536 9100-9636
+16 34 46 52 56 66 76 9100-0436 9100-0642 9100-9538 9100-9638
+17 35 47 53 57 67 77 9100-0438 9100-0644 9100-9540 9100-9640
+18 36 48 54 58 68 78 9100-0440 9100-9542 9100-9642
+20 38 50 56 60 70 80 9100-0442 9100-9544 9100-9644
+22 40 52 58 62 72 82 9100-0444 9100-9545 9100-9645
+24 42 54 60 64 74 84 9100-0445 9100-9547 9100-9647
+26 44 56 62 66 76 86 9100-0447 9100-9550 9100-9650
+27 45 57 63 67 77 87 9100-0450
+29 47 59 65 69 79 89 9100-0453
+32 50 62 68 72 82 92 9100-0455
+35 53 65 71 75 85 95
+37 55 67 73 77 87 97

9A-001
