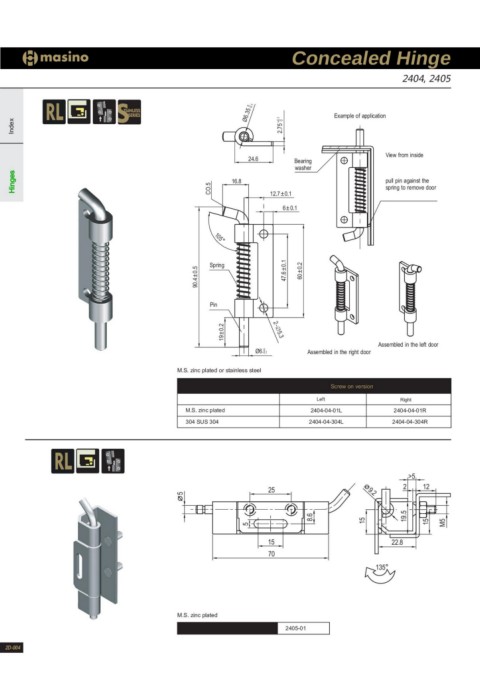

Index Ø6.35 -0.01 Concealed Hinge
2.75 +00.1 2404, 2405
Example of application

Hinges CO.5 24.6 Bearing View from inside
16.8 washer pull pin against the
spring to remove door
12.7±0.1
6±0.1

90.4±0.5 Spring 2-∅5.347.6±0.1
105° 60±0.2
Pin
19±0.2 Assembled in the left door
Ø6 -00.1 Assembled in the right door
M.S. zinc plated or stainless steel
Screw on version Right
M.S. zinc plated 2404-04-01R
304 SUS 304 Left 2404-04-304R
2404-04-01L
2404-04-304L

5 25 >5
5 9.2 2 12
15
8.6 70 22.8
15 135°
19.5
15
M5

M.S. zinc plated

2405-01

2D-004
